Antenna Control Module: Service and Repair



ANTENNA MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the interior courtesy lamp.
3. Remove the screw from the vehicle inside.

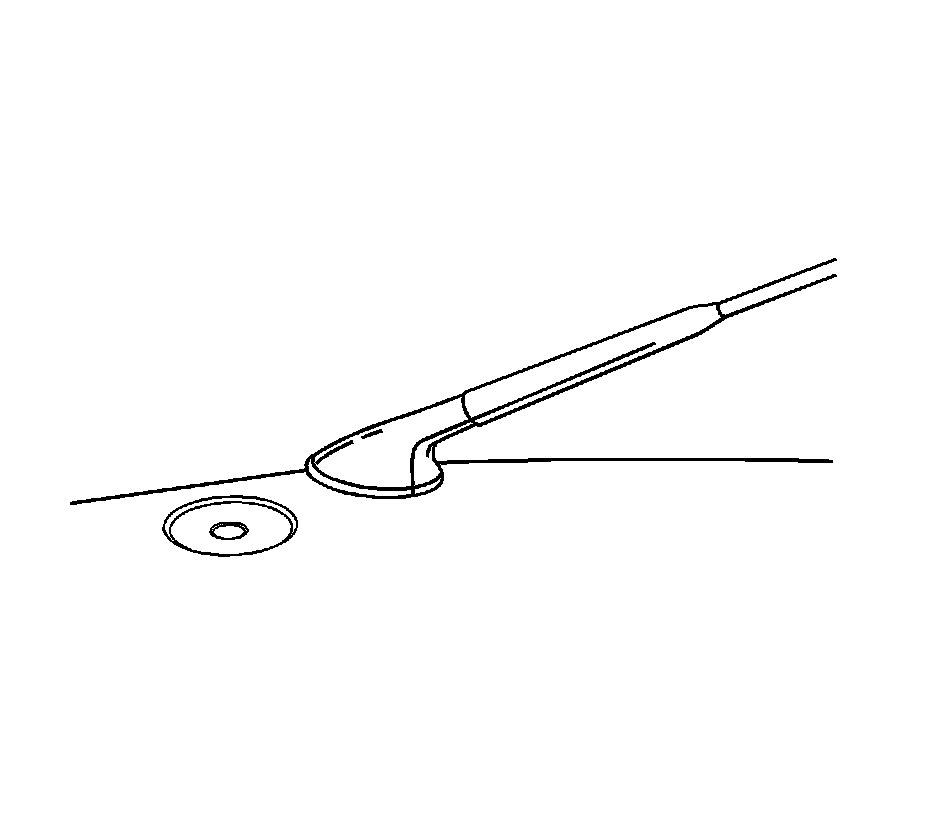

4. Remove the roof antenna.

INSTALLATION PROCEDURE




1. Install the roof antenna with the screw.

Tighten the roof antenna retaining screws to 3 N.m (27 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the interior courtesy lamp.
3. Connect the negative battery cable.
