Daytime Running Lamp Control Unit: Service and Repair



DAYTIME RUNNING LIGHTS (DRL) CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the instrument panel lower cover.

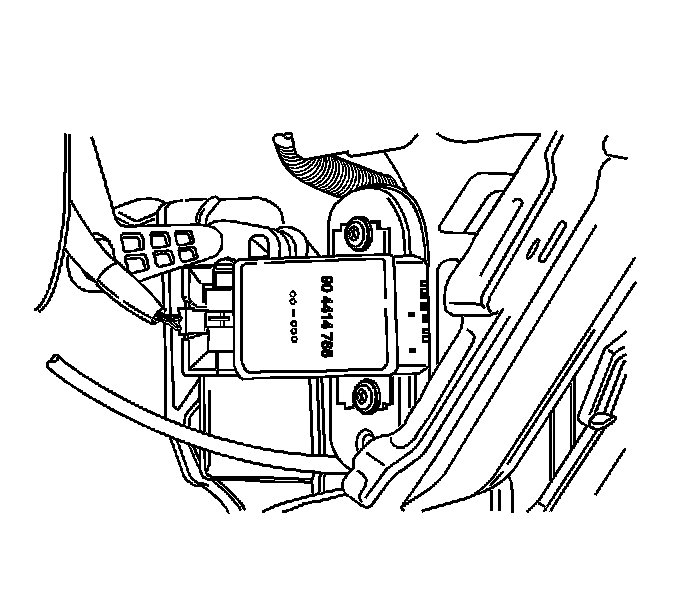

3. Reach underneath the instrument panel and remove the bolts and the daytime running lamp module.
4. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Install the daytime running lamp module with the bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the daytime running lamp module bolts to 2.5 N.m (22 lb in).

2. Connect the electrical connector.
3. Install the instrument panel lower cover.
4. Connect the negative battery cable.
