Differential Assembly Disassemble

Differential Assembly Disassemble

^ Tools Required
- DT 46463 (DW240-150) Transaxle Case Side Bearing Outer Race Adapter
- DT 46465 (DW240-170) Adapter Handle

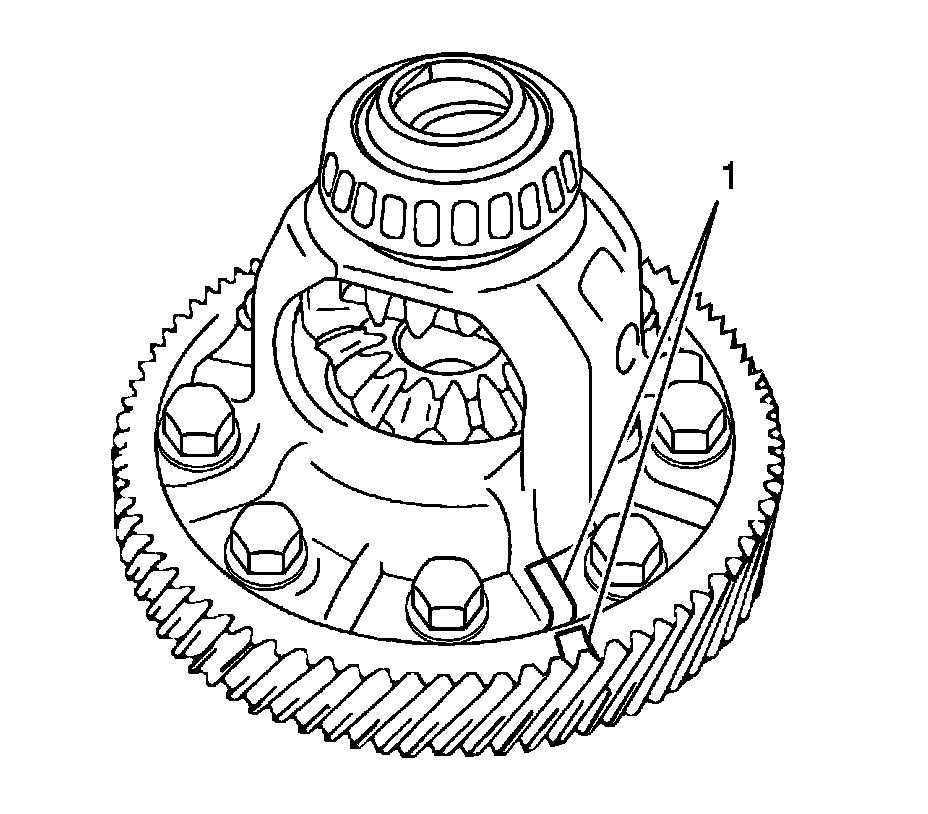

1. Place the matchmarks (1) on the ring gear and differential case.

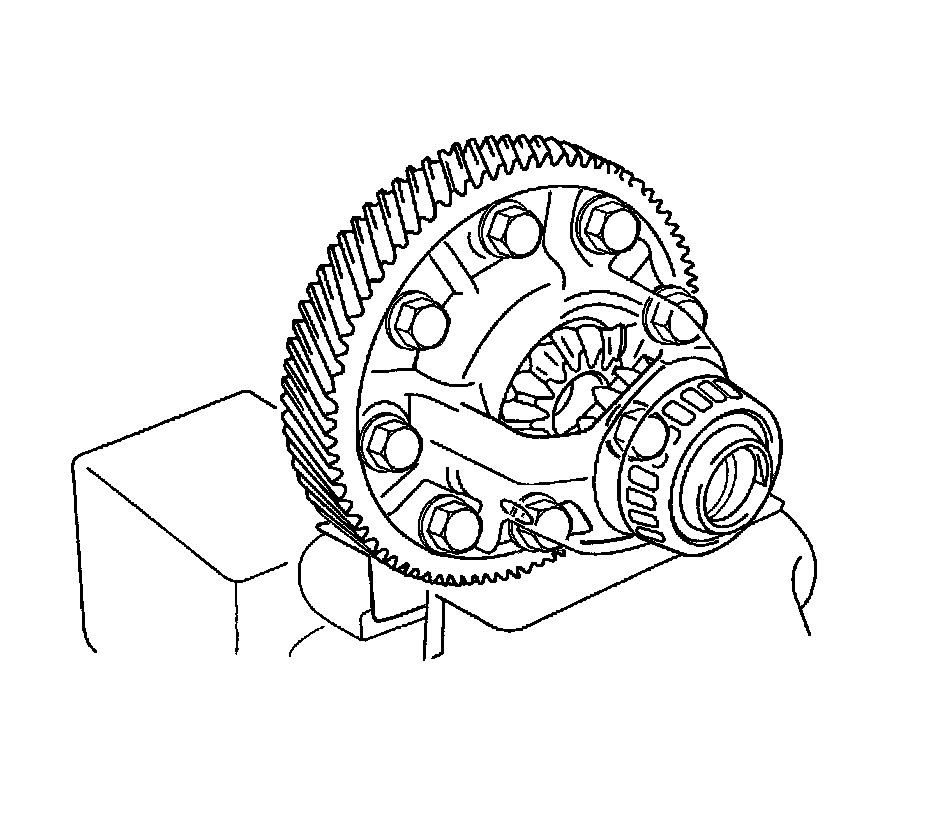

2. Remove the 8 bolts.





3. Using a plastic hammer, tap on the ring gear to remove it from the case.





4. Using a suitable puller, remove the tapered roller bearing of transaxle housing side.





5. Using a suitable puller, remove the tapered roller bearing of transaxle case side.





6. Using a pin punch and hammer, drive out the pin from the ring gear side.





7. Remove the differential pinion shaft from the case.





8. Remove the 2 differential pinion gears, 2 differential side gears, 2 differential pinion thrust washers, and 2 differential side gear thrust washers.

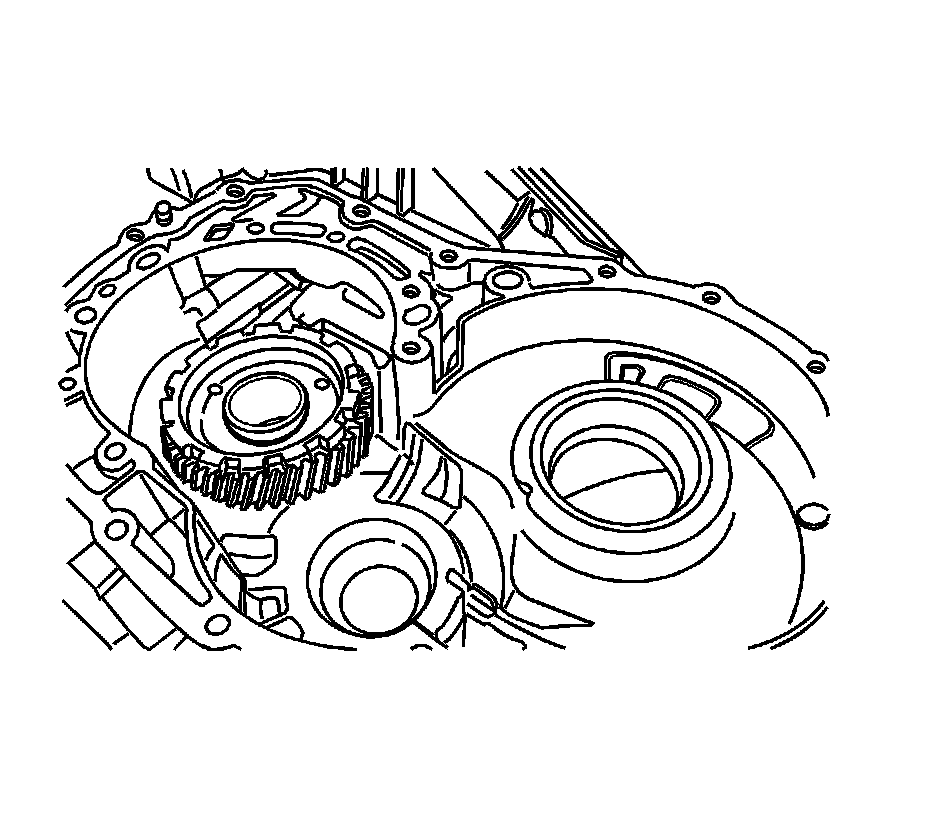

9. Using a driver, remove the oil seal from the transaxle housing.





10. Using a suitable puller, remove the side bearing outer race of transaxle housing.

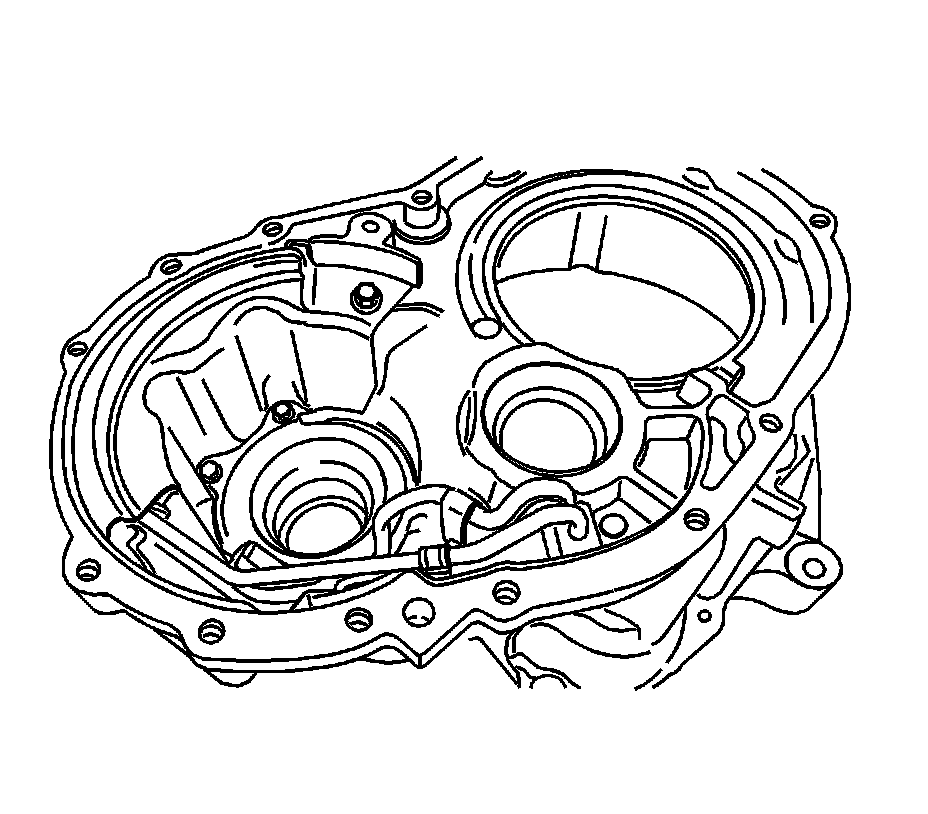

11. Using a driver, remove the oil seal of transaxle case.

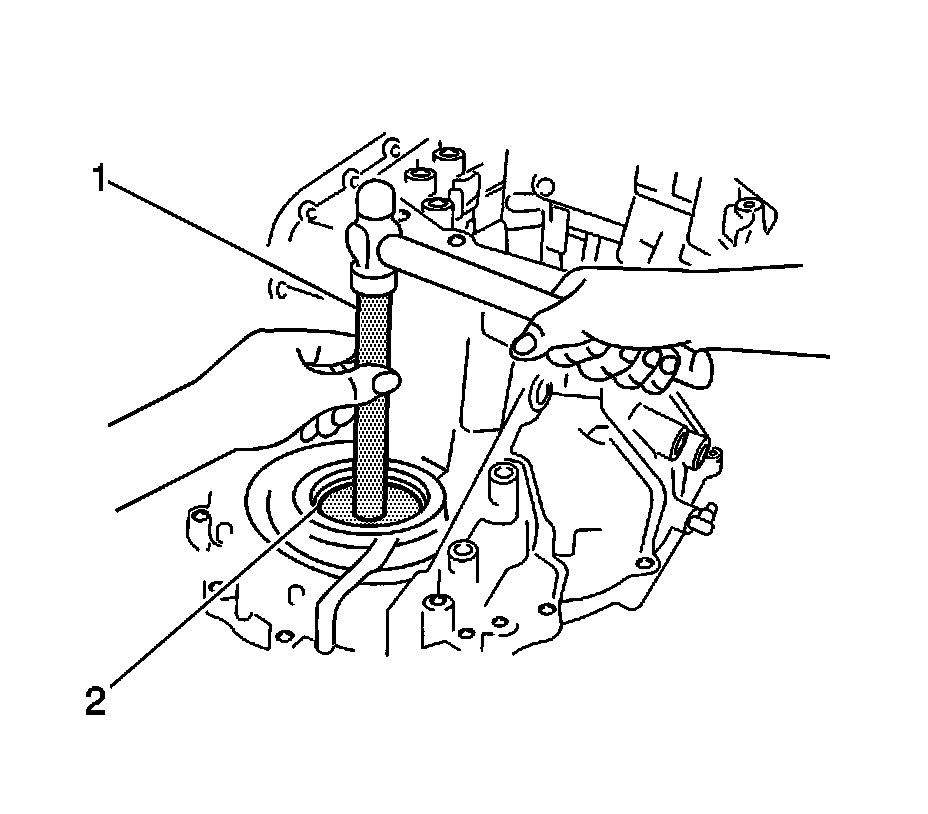

12. Using the DT 46463 (2) and the DT 46465 (1), remove the transaxle case side bearing outer race and shim.
