Shift Cable: Service and Repair



Shift Control Cable Replacement - Floor Shift

Removal Procedure





1. Caution:
Refer to Battery Disconnect Caution in Service Precautions.

Disconnect the negative battery cable.
2. Remove the floor console.
3. Remove the cable adjusting nut.
4. Disconnect the shift control cable from the shift control lever assembly.





5. Remove the shift control cable retaining E-ring.
6. Disconnect the shift control cable from the park/neutral position (PNP) switch.





7. Remove the E-ring from the shift control cable bracket and disconnect the shift control cable.

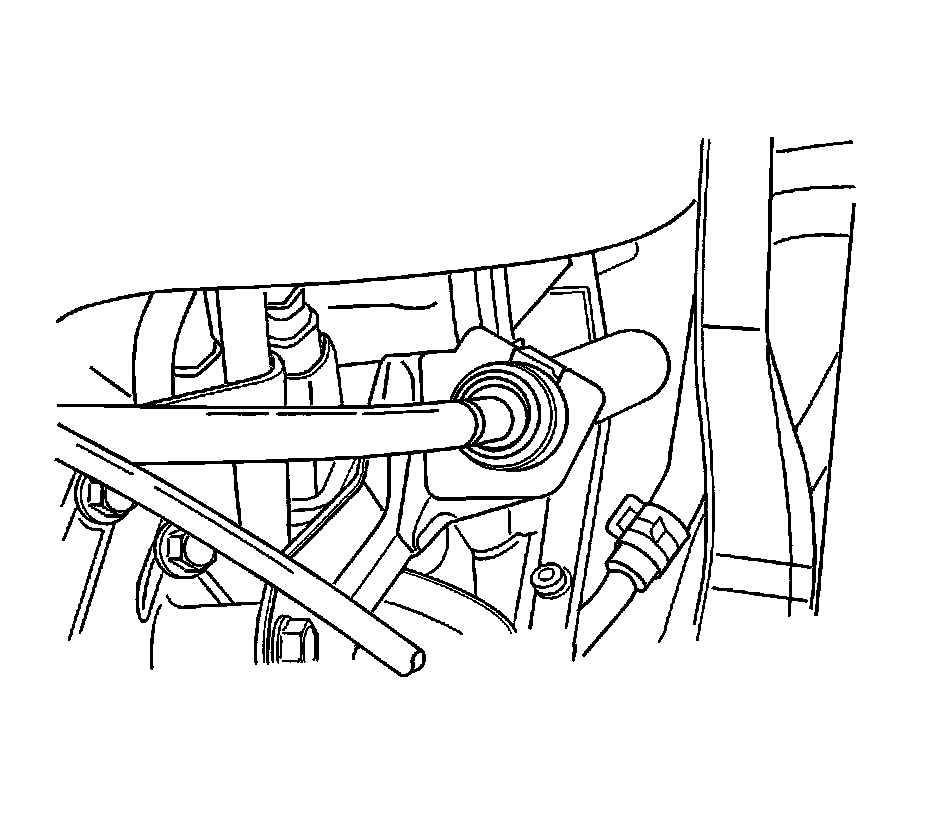

8. Disconnect the shift control cable from the shift control cable fastener.
9. Remove the shift control cable from the vehicle.

Installation Procedure





1. Install the shift control cable to the vehicle.
2. Connect the shift control cable to the shift control cable fastener.
3. Install the E-ring to the shift control cable bracket and connect the shift control cable.





4. Connect the shift control cable to the PNP switch.
5. Install the shift control cable retaining E-ring.





6. Connect the shift control cable to the shift control lever assembly.

7. Notice:
Refer to Fastener Notice in Service Precautions.

Install the cable adjusting nut.

Tighten the cable adjusting nut to 8 Nm (71 inch lbs.).

8. Install the trim panel to the floor console.
9. Connect the negative battery cable.
