Gearshift Control Lever Replacement



Gearshift Control Lever Replacement
Removal Procedure





1. Remove the floor console.
2. Disconnect the select and shift control cable.

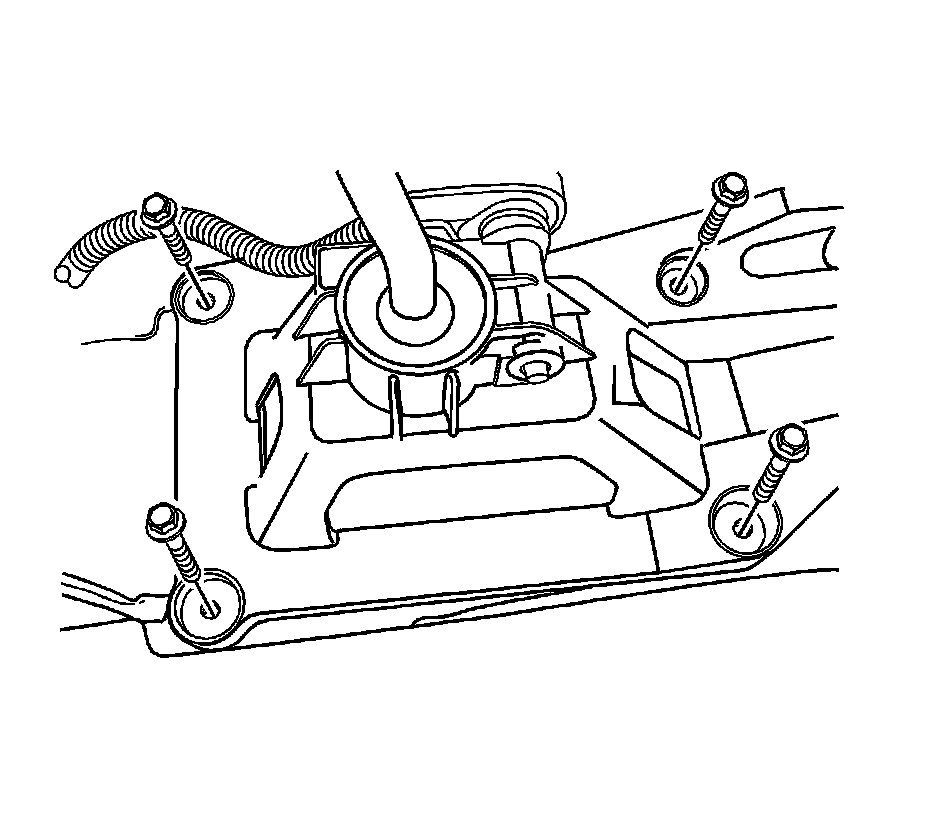

3. Remove the gear shift control lever bolts and assembly.

Installation Procedure





1. Install the gear shift control lever assembly and bolts (1).

Tighten the bolts to 4 - 7 Nm (35 - 62 inch lbs.).

Notice
Refer to Fastener Notice in Service Precautions.

2. Adjust the select cables.
3. Connect the select and shift control cable.
4. Install the floor console.
