Front Door Window Glass: Service and Repair

Window Replacement - Front Door

Removal Procedure





1. Remove the front door trim panel. Refer to Trim Panel Replacement - Front Door (Removal and Replacement) in Interior Trim.
2. Remove the door seal trim. Refer to Water Deflector Replacement - Door (Service and Repair) .
3. Remove the outside channel molding. Refer to Window Run Channel Replacement - Front Door (Window Run Channel Replacement - Front Door) .

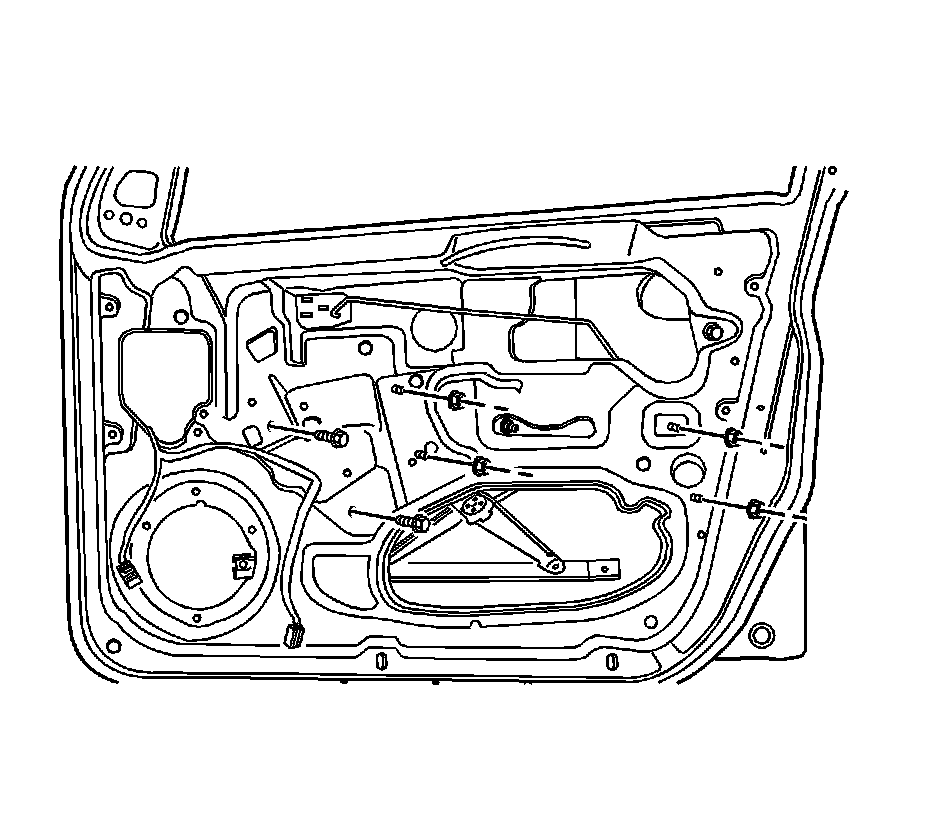

4. Remove the screws that secure the glass to the window regulator.




5. Remove the bolts and the guide rail.
6. Remove the glass from the door.



Installation Procedure





1. Install the glass in the door.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the guide rail and the bolts.

Tighten the guide rail bolts to 7 N.m (62 lb in).





3. Install the glass to the window regulator with the screws.

Tighten the door glass screws to 7 N.m (62 lb in).

4. Install the outside channel molding. Refer to Window Run Channel Replacement - Front Door (Window Run Channel Replacement - Front Door) .
5. Install the door seal trim. Refer to Water Deflector Replacement - Door (Service and Repair) .
6. Install the front door trim panel. Refer to Trim Panel Replacement - Front Door (Removal and Replacement) in Interior Trim.
