Rear Fender Liner: Service and Repair

Rear Wheelhouse Liner Panel Replacement

Removal Procedure




1. Raise and support the vehicle. Lifting and Jacking the Vehicle.
2. Remove the rear tires and wheels.




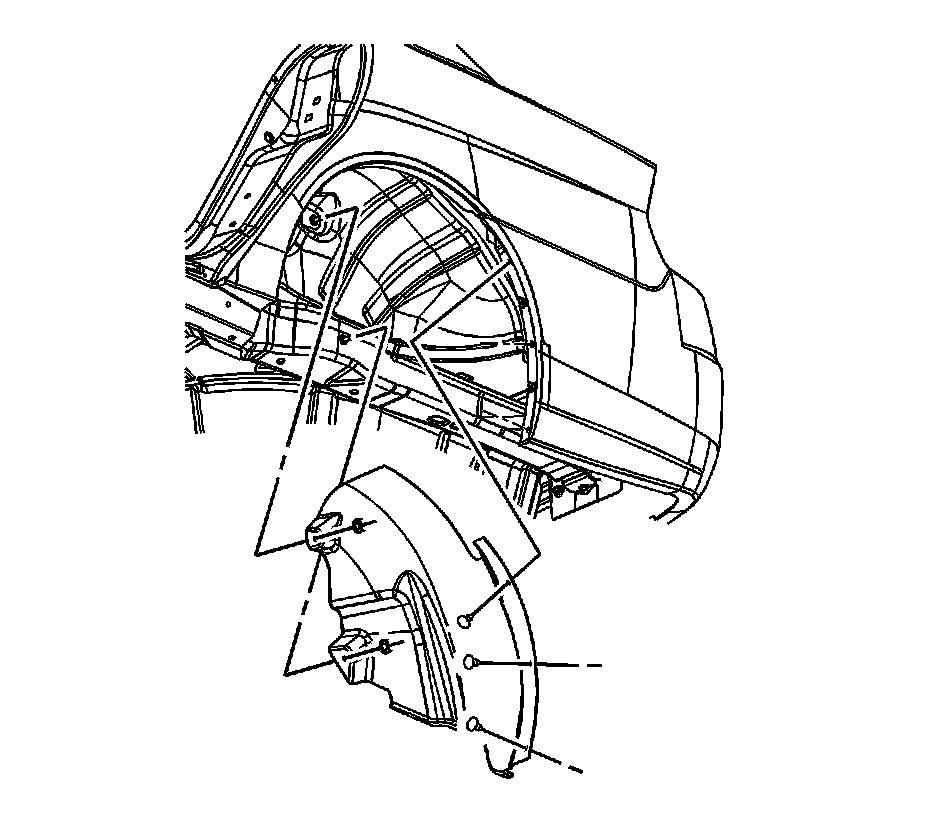

3. Remove the rear wheel housing, pre-cut the liner in the areas (1, 2) to remove.
4. Remove the rear wheelhouse liner-to-rear wheelhouse retainers.
5. Remove the rear wheelhouse liner nuts.
6. Remove the rear wheelhouse liner from the vehicle.

Installation Procedure




1. Install the rear wheelhouse liner to the vehicle.
If replacing the wheelhousing liners with a new one, refer to step 3 in the removal.
2. Install the rear wheelhouse liner fasteners.

Notice: Refer to Fastener Notice.

3. Install the rear wheelhouse liner nuts.

Tighten the nut to 5 N.m (44 lb in).

4. Install the rear tires and wheels.
5. Lower the vehicle.
