Radiator Outlet Hose Replacement

Radiator Outlet Hose Replacement (RPOs L26, L32)

Tools Required

J 38185 Hose Clamp Pliers

Removal Procedure

1. Drain the cooling system.




2. Use J 38185 in order to reposition the hose clamp from the radiator.

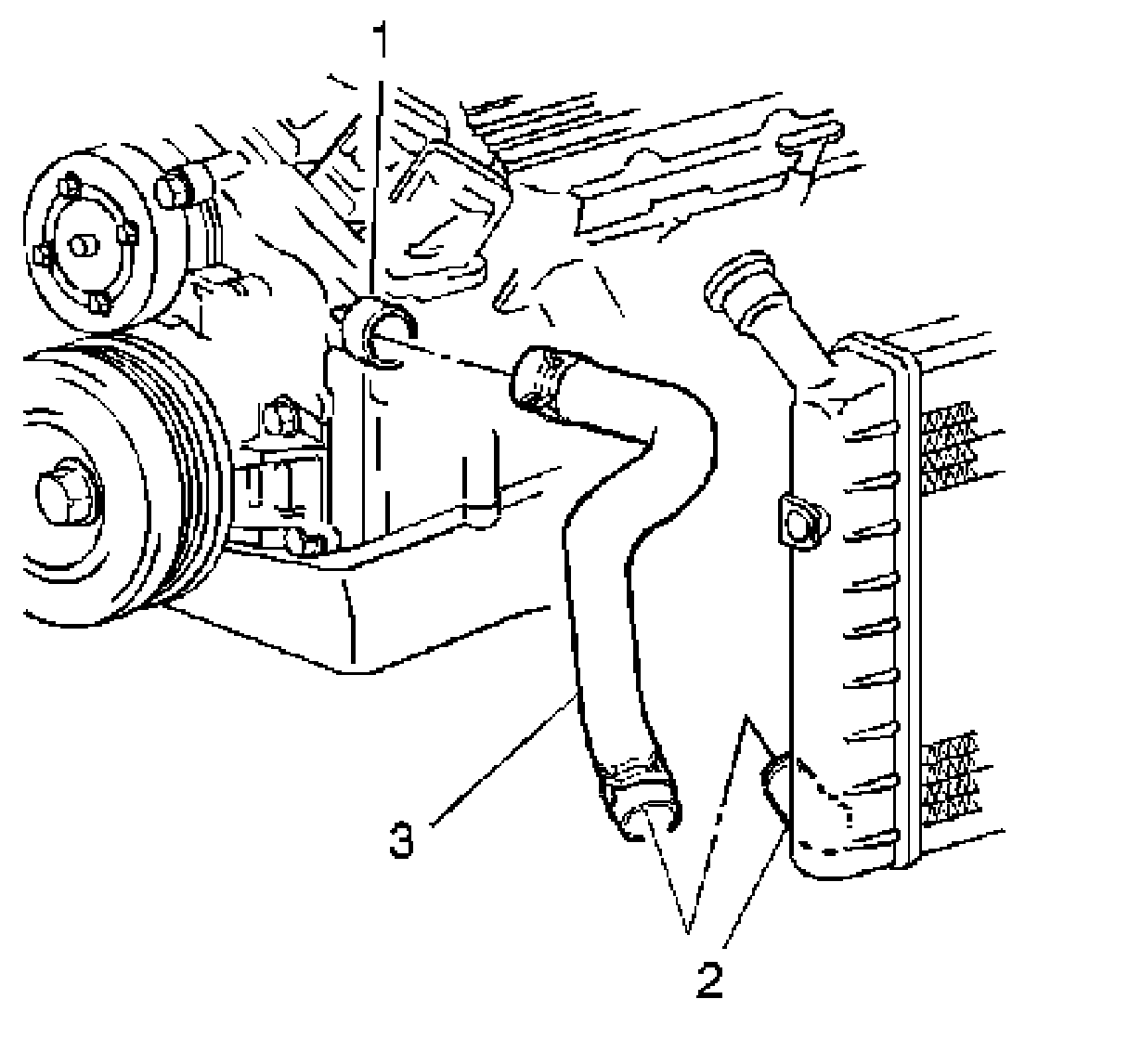

3. Remove the radiator hose (3) from the radiator outlet (2).

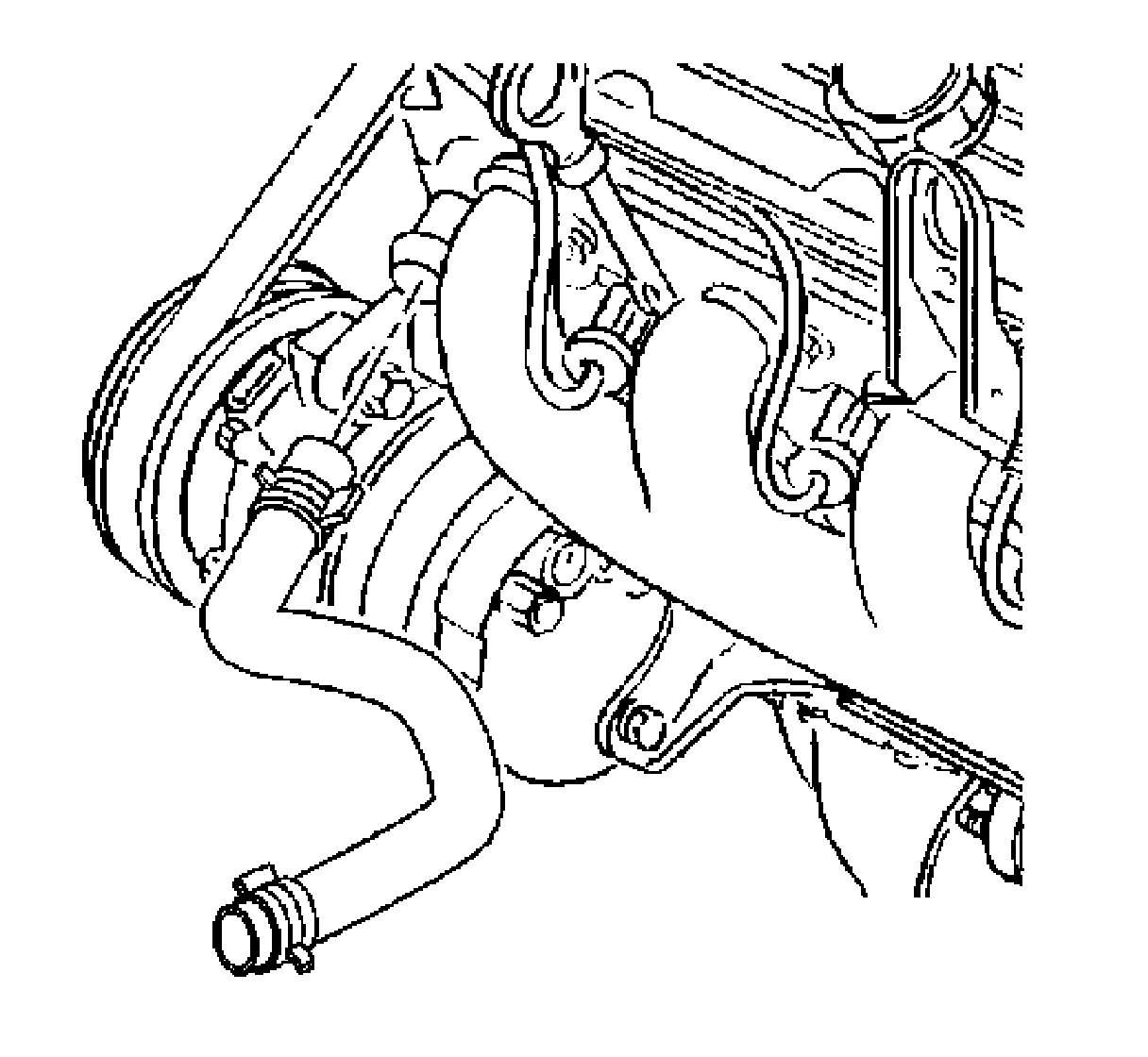

4. Use J 38185 in order to reposition the hose clamp from the water pump housing.
5. Remove the radiator outlet hose from the water pump housing.

Installation Procedure




1. Align the marks on the hose. Install the radiator outlet hose to the water pump housing.
2. Use J 38185 in order to reposition the hose clamp to the water pump housing.




3. Install the radiator hose (3) onto the outlet port (2) of the radiator.
4. Use J 38185 in order to reposition the hose clamp to the radiator.
5. Fill the cooling system.
