Entertainment/Communication Connector End Views



Entertainment/Communication Connector End Views

Audio Amplifier - C1 (UQ3)














Audio Amplifier - C2 (UQ3)














Audio Amplifier - C3 (UQ3)














Cellular Microphone














Digital Radio Receiver (U2K)

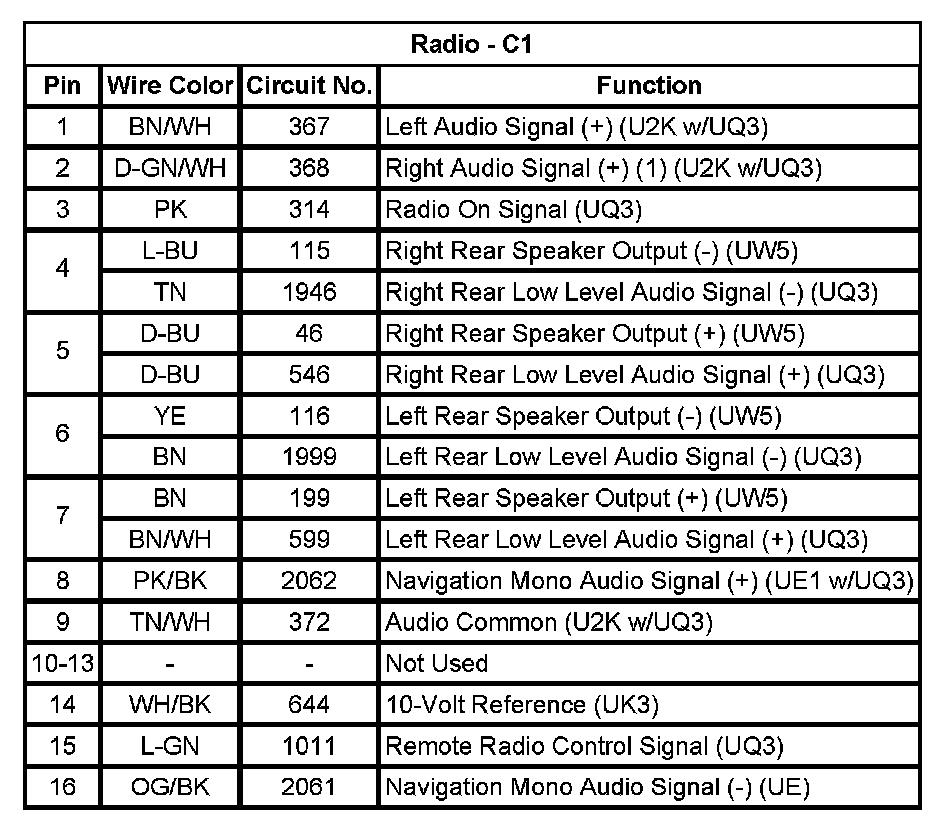

Radio - C1














Radio - C2














Speaker - Left Front Door (UQ3)














Speaker - Left Front Door (UW5)

A/T Shift Lock Control Solenoid:














Speaker - Left Front Tweeter

A/T Shift Lock Control Solenoid:














Speaker - Left Rear (UQ3)

A/T Shift Lock Control Solenoid:














Speaker - Left Rear (UW5)














Speaker - Right Front Door (UQ3)














Speaker - Right Front Door (UW5)

A/T Shift Lock Control Solenoid:














Speaker - Right Front Tweeter

A/T Shift Lock Control Solenoid:














Speaker - Right Rear (UQ3)

A/T Shift Lock Control Solenoid:














Speaker - Right Rear (UW5)














Speaker - Subwoofer (UQ3)














Vehicle Communication Interface Module (VCIM) - C1














Vehicle Communication Interface Module (VCIM) - C2














Vehicle Communication Interface Module (VCIM) - C4
