Front Floor Console Compartment Door Latch Replacement



Front Floor Console Compartment Door Latch Replacement

Removal Procedure

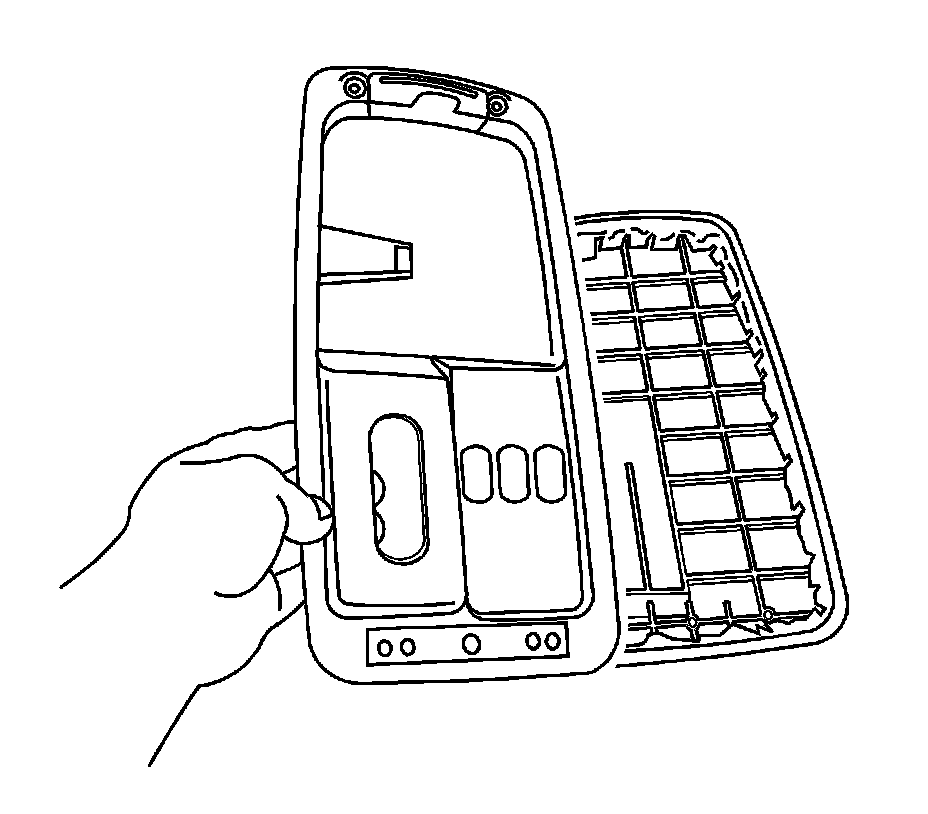

1. Lift the armrest cover to expose the armrest hinge and insert.




2. Remove the screws from the armrest cover.

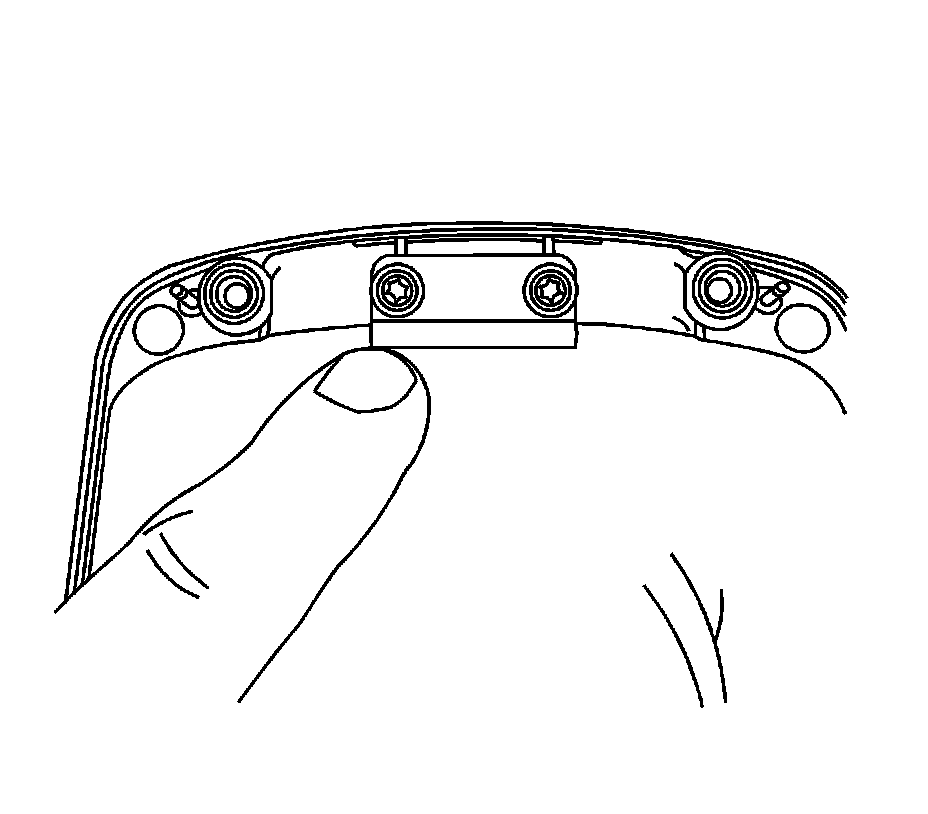

3. Remove the console latch cover to expose the latch screws.




4. Remove the latch screws from the center console armrest cover.

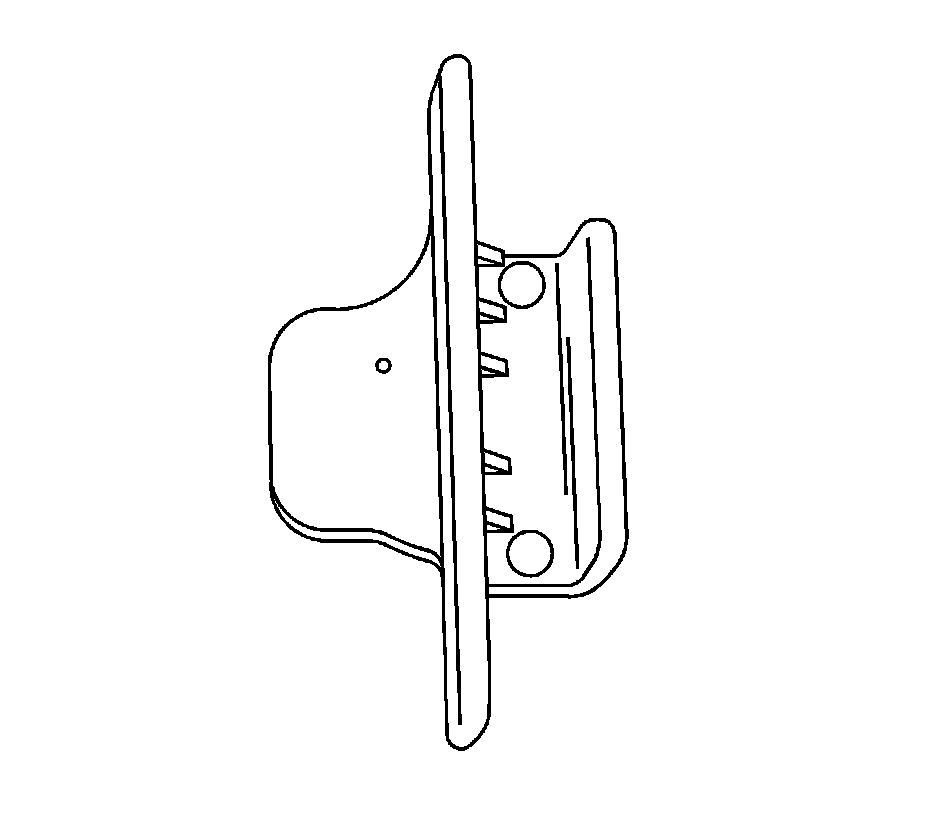

5. Remove the latch from the armrest cover.

Installation Procedure




1. Align the new latch to the armrest cover.

Notice: Refer to Fastener Notice.

2. Install the latch screws to the armrest cover.

Tighten the screws to 2.5 N.m (22 lb in).




3. Install the screws that secure the armrest cover to the center console.

Tighten the screws to 2.5 N.m (22 lb in).




4. Snap the console insert to the armrest cover.
5. Close the armrest cover. Inspect the cover for alignment and operation.
