Coolant Heater Cord Replacement



Coolant Heater Cord Replacement

Removal Procedure

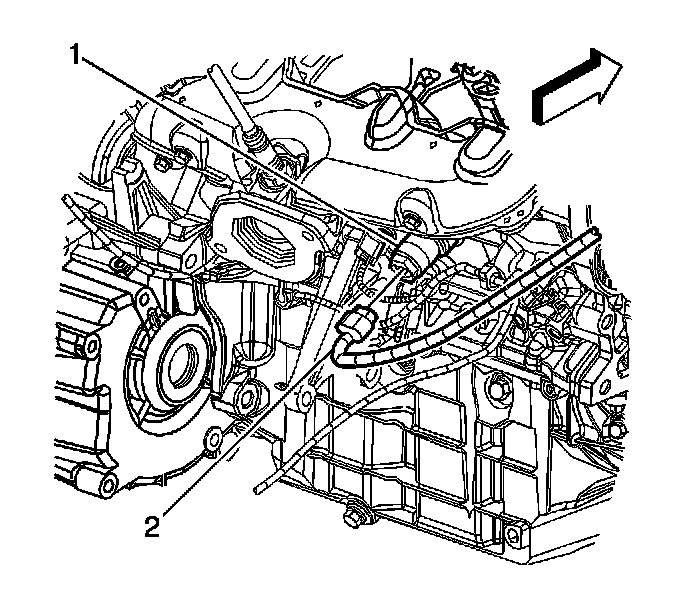

1. Disconnect the coolant heater cord (2) from the coolant heater (1).

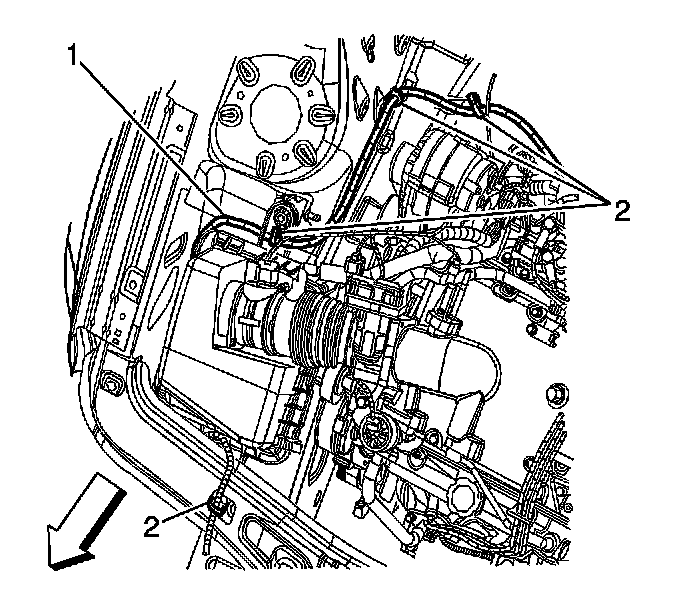

2. Disconnect the coolant heater cord (1) from the cord retainers (2).
3. Remove the coolant heater cord (1) from the vehicle.

Installation Procedure




1. Route the coolant heater cord (1) as illustrated, in the engine compartment.
2. Connect the coolant heater cord (1) to the cord retainers (2).




3. Connect the coolant heater cord (2) to the coolant heater (1).
