Entertainment/Communication Component Views



Entertainment/Communication Component Views

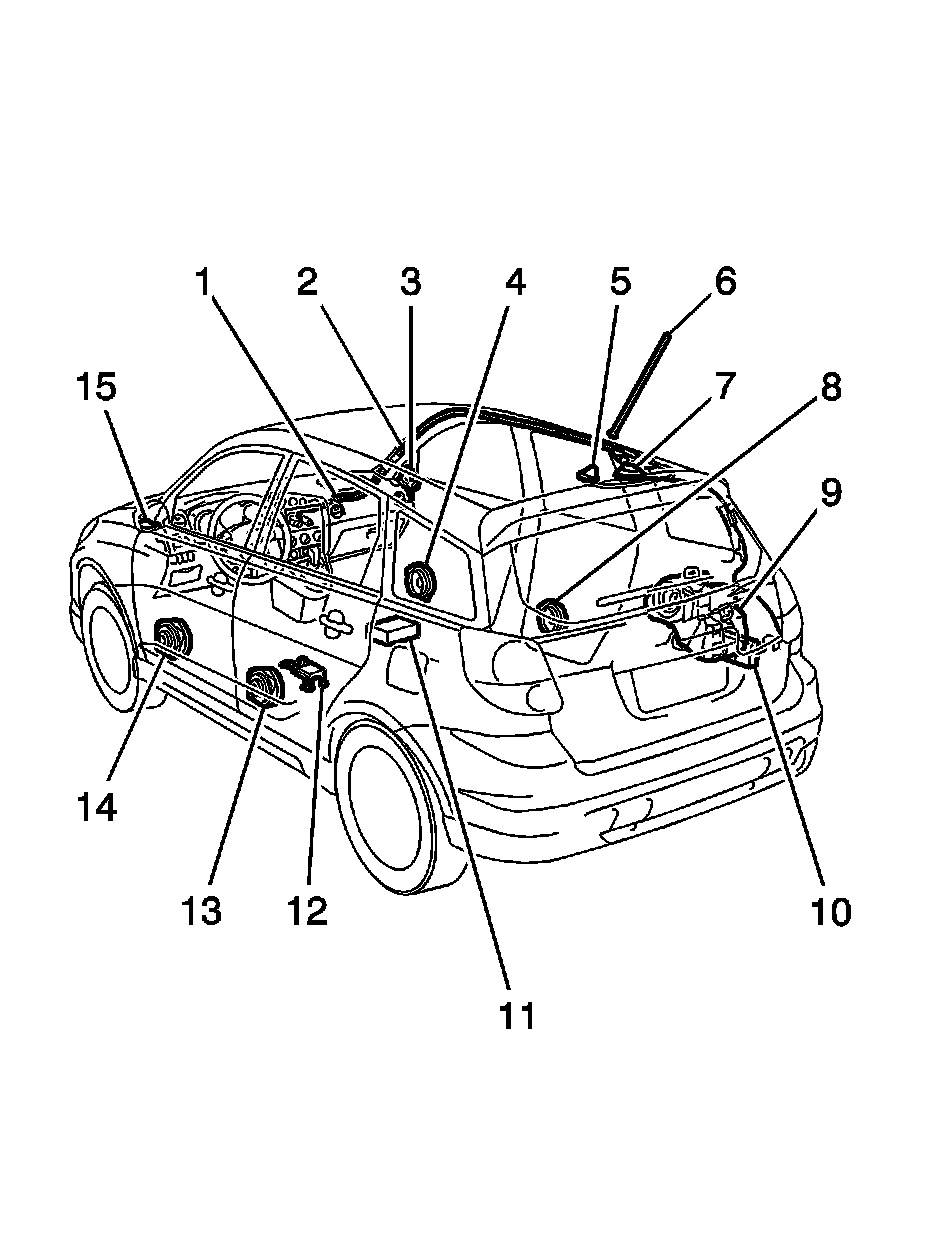

Entertainment




1 - Radio Antenna Front Harness
2 - Radio Antenna Rear Harness
3 - Front RH Door Upper Speaker
4 - Front RH Door Lower Speaker
5 - Antenna Base Assembly
6 - Antenna Mast
7 - XM Digital Radio Receiver Antenna
8 - Rear RH Door Speaker
9 - Sub Woofer Module
10 - XM Digital Radio Receiver
11 - Audio Amplifier
12 - Voltage Inverter Assembly
13 - Rear LH Door Speaker
14 - Front LH Door Lower Speaker
15 - Front LH Door Upper Speaker

OnStar




1 - Vehicle Communication Interface Module C1
2 - Vehicle Interface Unit Connector
3 - Vehicle Interface Unit
4 - Vehicle Communication Interface Module
5 - C303
6 - Vehicle Communication Interface Module C2

Onstar Rearview Mirror




1 - Inside rear view mirror
2 - Automatic dimming photocell
3 - Onstar indicator light
4 - Emergency button
5 - Onstar button
6 - Call button
7 - Electrochromatic mirror button
8 - Cellular Microphone
