Front Fender Liner: Service and Repair


Wheelhouse Panel Replacement


Removal Procedure

1.Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .





2.Remove fender flare. Refer to Front Fender Flare Replacement .

3.Remove the bolts and plastic retainers from wheel house panel.

4.Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement .

5.Disengage the plastic retainers from the wheel house panel.

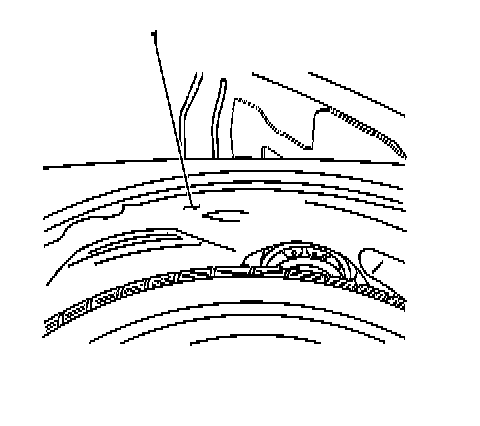

6.Remove the wheel house panel (1) from the fender.

Installation Procedure





Notice:Refer to Fastener Notice .

1.Install the wheel house panel (1) to the fender.

2.Secure the wheel house panel (1) with the bolts and the plastic retainers.

TightenTighten the wheelhouse panel bolts to 10 N �m (89 lb in).

3.Install the rocker panel molding. Refer to Rocker Panel Molding Replacement .

4.Install the fender flare. Refer to Front Fender Flare Replacement .

5.Lower the vehicle.
