Front Seat Back Trim Replacement



Front Seat Back Trim Replacement

Removal Procedure

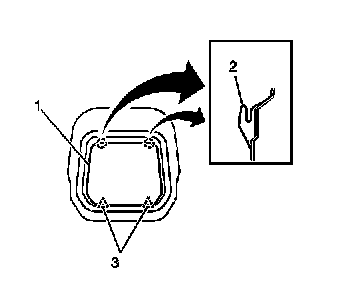

1. Using a flat-bladed tool, disengage the 2 lower plastic retainers (3) from the trim panel (1).
2. Once plastic retainers (3) are disengaged, pull down on trim panel (1).
3. Remove seat back trim panel (1) from seat back.

Installation Procedure




1. Install trim panel (1) to the rear seat back, and slide upward until plastic hooks (2) engage.
2. Press firmly on lower trim panel (1) until lower plastic retainers (3) fasten.
