Front Seat Replacement - Bucket



Front Seat Replacement - Bucket

Removal Procedure




Caution: Refer to SIR Caution.

1. Disable the SIR system, if equipped with side impact inflatable restraint modules.

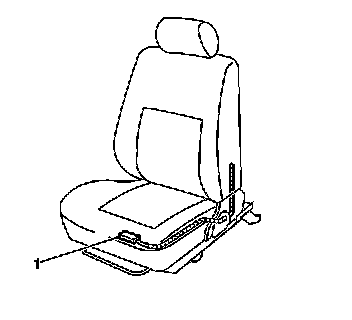

2. Disconnect the side impact inflatable restraint module electrical connector (1), if equipped. The electrical connector is located beneath the seat cushion.

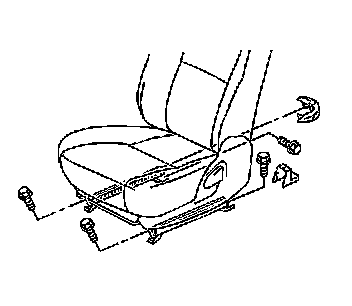

3. Remove the following components from the vehicle:

* The seat bolt finish covers
* The 4 bolts
* The front seat assembly

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the front seat assembly to the vehicle. Secure the seat with the 4 bolts.

Tighten the front seat assembly bolts to 47 N.m (35 lb ft).

2. Install the seat bolt finish covers.




3. Connect the side impact inflatable restraint module electrical connector (1), if equipped.
4. Enable the SIR system, if disabled.
5. Perform the Passenger Presence Rezeroing procedure.
