Hood Weatherstrip: Service and Repair
Hood Rear Seal ReplacementRemoval Procedure 1.
Raise and suitably support the
hood.
2.
Remove the following components from the vehicle:
*

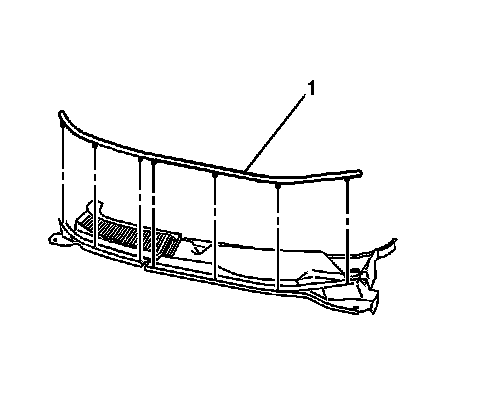

The rear
hood seal (1).
*
The 7 plastic retainers.
Installation Procedure 1.
Install the 7 rear
hood seal plastic retainers to the seal (1).
2.
Install the rear
hood seal (1) to the air inlet
grille panels.
3.
Lower the
hood.
