Front Brake Shield Replacement



Front Brake Shield Replacement

Removal Procedure

1. Remove the front wheel hub and bearing.

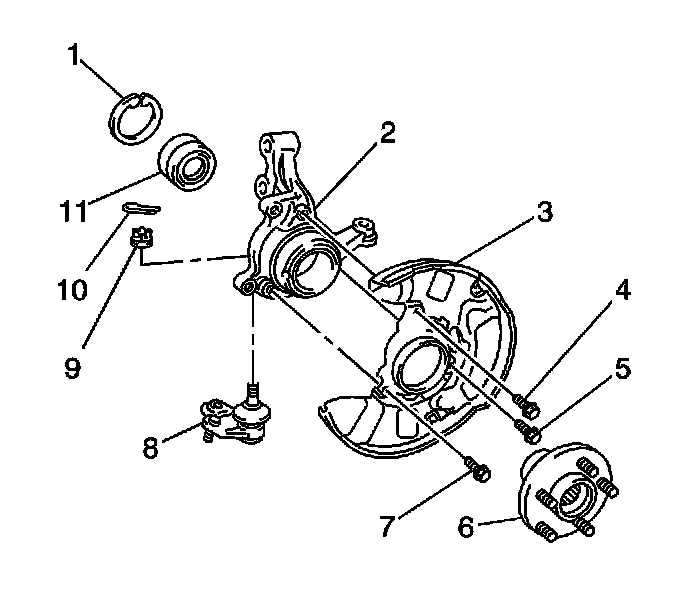

2. Remove the 3 bolts (4,5,7) and the brake shield (3) from the knuckle (2).

Installation Procedure




1. Install the brake shield (3) to the knuckle (2).

Notice: Refer to Fastener Notice.

2. Install the 3 bolts (4,5,7).

Tighten the bolts to 8.3 N.m (73.46 lb in).

3. Install the front wheel hub and bearing.
