Hydraulic System: Locations



Hydraulic Brake Component Views

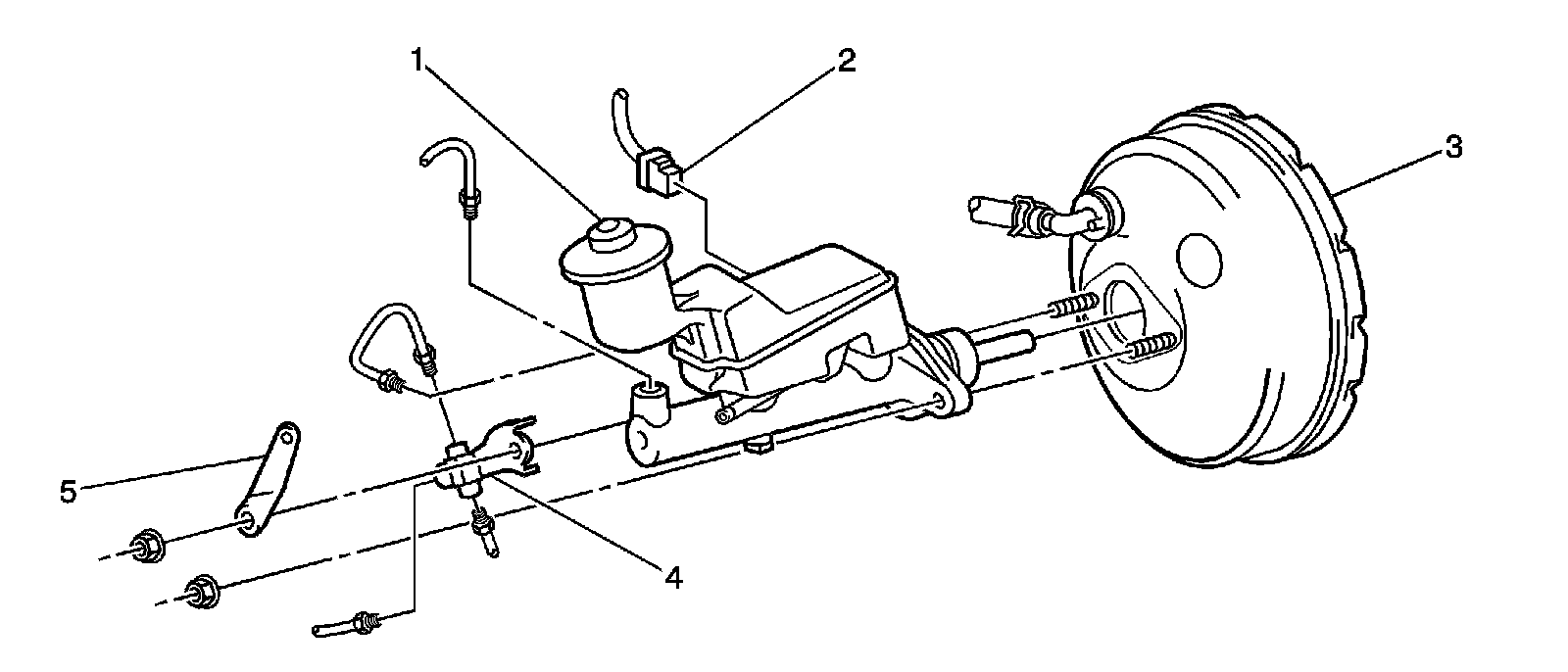

Master Cylinder




1 - Master Cylinder
2 - Fluid Level Warning Lamp Connector
3 - Brake Booster
4 - 3-Way Valve
5 - Vacuum Check Valve Bracket

Parking Brake

Parking Brake:




1 - Park Brake Lever
2 - Park Brake Front Cable Upper Nut
3 - Park Brake Front Cable Lower Nut
4 - Park Brake Lever Bolt
5 - Park Brake Indicator Switch
6 - Park Brake Right Rear Cable
7 - Park Brake Left Rear Cable
8 - Park Brake Cable Equalizer
9 - Park Cable Front Cable
10 - Park Brake Indicator Connector
11 - Park Brake Lever Bolt
12 - Park Brake Indicator Switch Bolt
