Defroster Duct Replacement - Windshield



Defroster Duct Replacement - Windshield

Removal Procedure

1. Remove the upper instrument panel (IP) assembly.
2. Remove the lower air distribution duct.

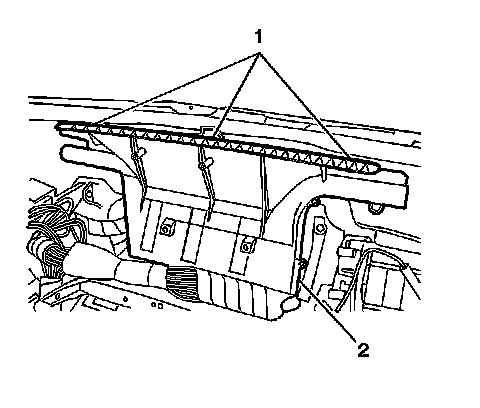

3. Remove the three defroster duct tabs (1) from the brackets.
4. Remove the defroster duct (2) from the HVAC module.

Installation Procedure




1. Install the defroster duct (2) to the HVAC module. Secure the defroster duct with the three tabs (1).
2. Install the lower air distribution duct.
3. Install the IP assembly.
