Heating and Air Conditioning: Locations

HVAC Component Views

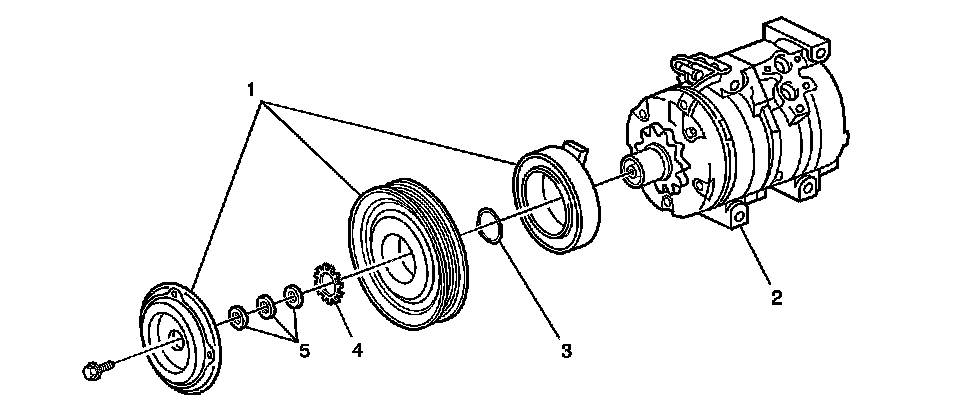

A/C Compressor Clutch

1 - A/C Compressor Clutch Assembly
2 - A/C Compressor Assembly
3 - Snap Ring
4 - Snap Ring
5 - Clutch Washer

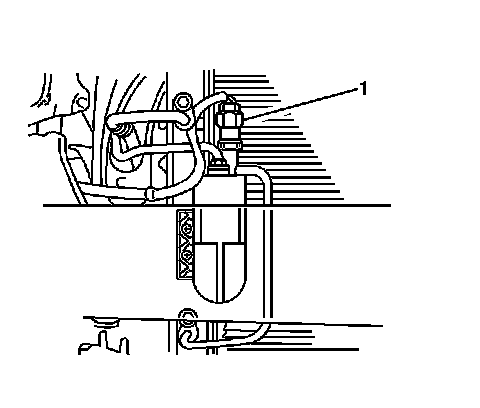

Refrigerant Pressure Switch

1 - Refrigerant Pressure Sensor

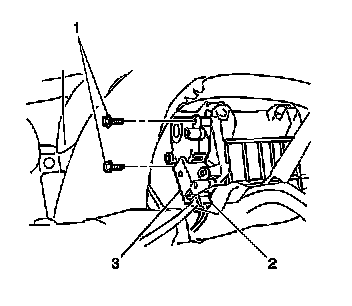

Recirculation Actuator

1 - Actuator Bolts
2 - Actuator Connector
3 - Recirculation Actuator

A/C Switch

1 - A/C Switch
2 - Heater Relay

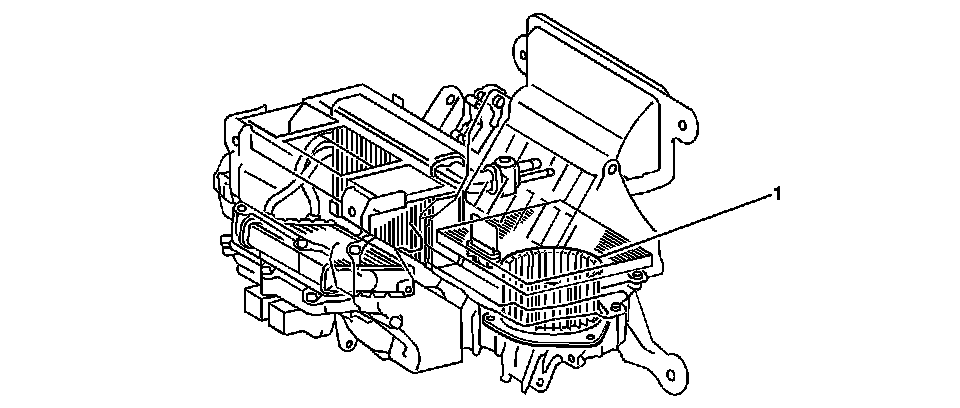

Blower Motor

1 - Blower Motor

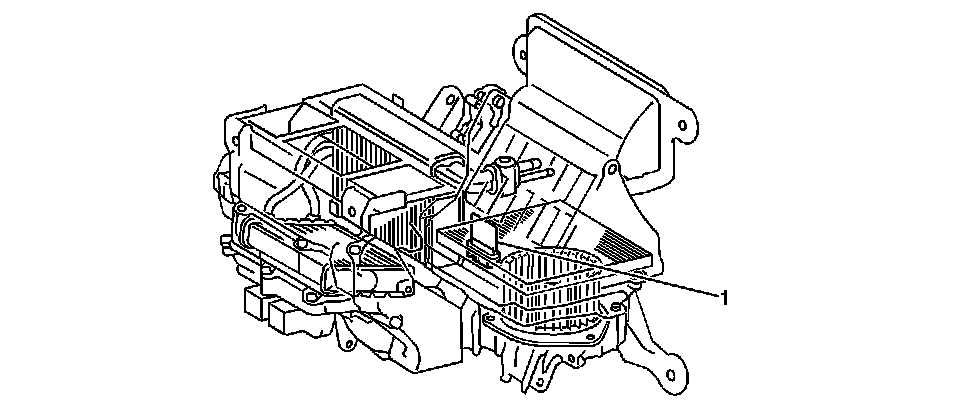

Blower Motor Resistor

1 - Blower Resistor

Blower Speed Selector Switch

1 - Blower Speed Selector Switch
