Instrument Panel, Gauges and Warning Indicators: Locations



Displays and Gages Component Views

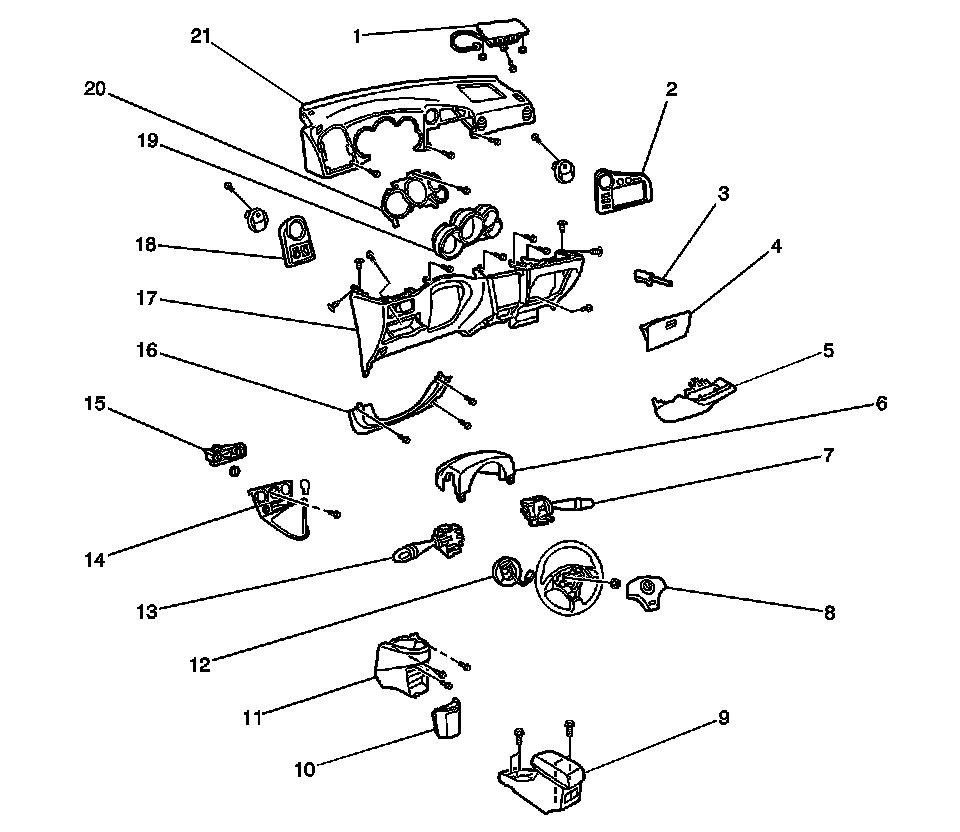

Instrument Panel Components




1 - Inflatable Restraint Instrument Panel Module
2 - Instrument Cluster Center Finish Panel
3 - Glove Compartment Door Stopper
4 - Glove Compartment Door
5 - Steering Column Lower Cover
6 - Steering Column Upper Cover
7 - Combination Switch
8 - Inflatable Steering Wheel Module
9 - Rear Console Assembly
10 - Instrument Panel Box
11 - Instrument Panel Lower Center Finish Panel
12 - Steering Wheel Module Coil
13 - Combination Switch
14 - Instrument Cluster Center Panel
15 - Heater/Air Conditioning Controls
16 - Instrument Panel Lower Pad LH Insert
17 - Lower Instrument Panel
18 - Instrument Cluster Finish Panel
19 - Instrument Cluster Bracket
20 - Instrument Cluster Assembly
21 - Upper Instrument Panel

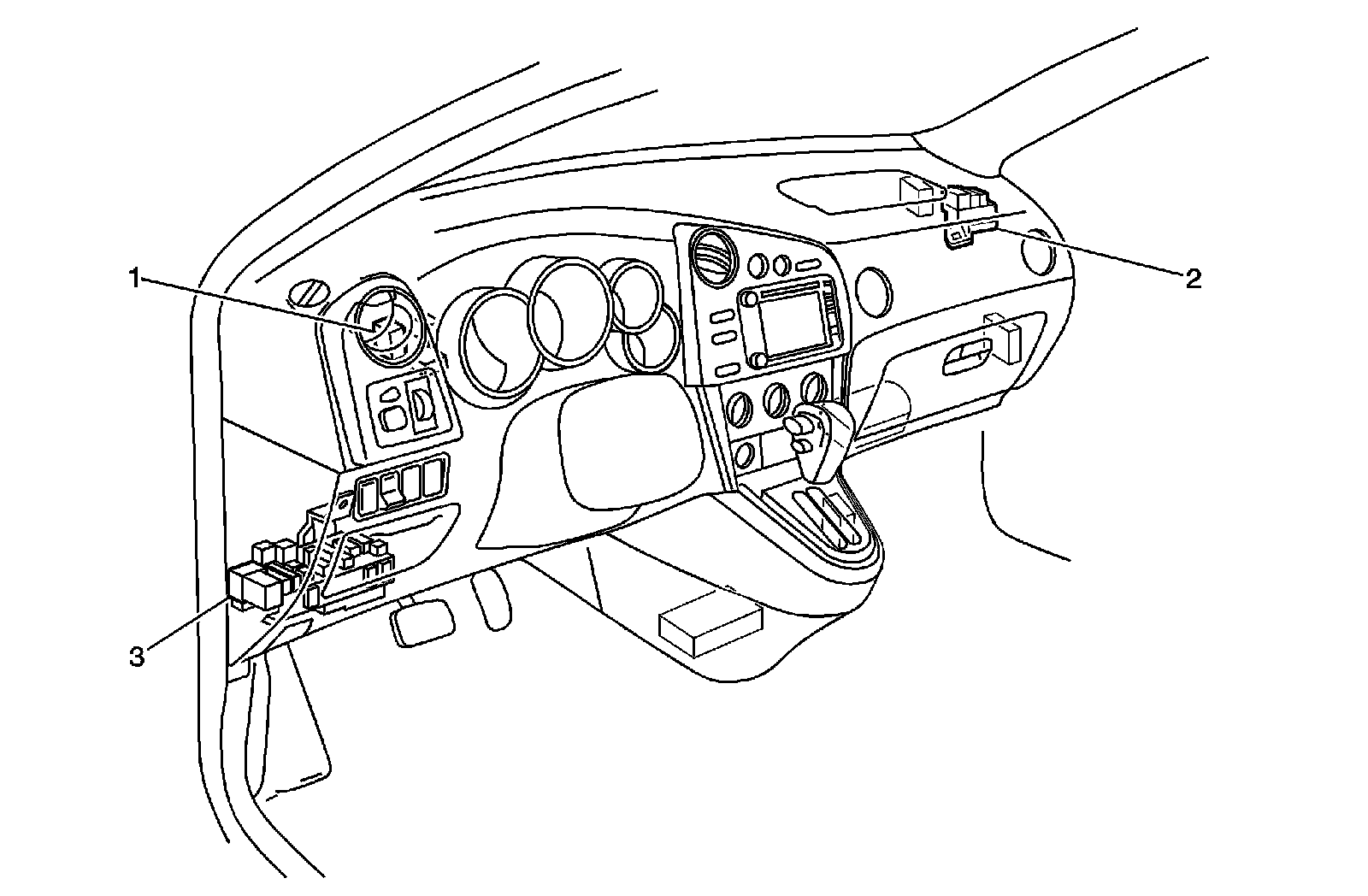

I/P Fuse and Junction Blocks




1 - LH I/P Junction Block
2 - RH I/P Junction Block
3 - LH I/P Fuse Block
