Turn Signal Flasher: Service and Repair

HAZARD AND TURN SIGNAL FLASHER REPLACEMENT

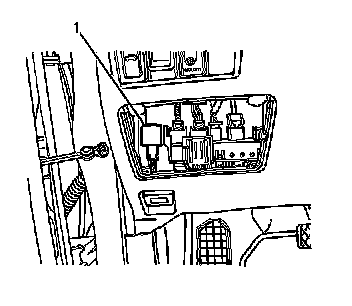

The turn/hazard signal relay is located in the Junction Block behind the IP storage compartment tray.

Removal Procedure

1. Remove the IP storage compartment tray.
2. Remove the turn/hazard signal relay (1) from the Junction Block.

Installation Procedure

1. Install the turn/hazard signal relay (1) to the Junction Block.
2. Install the IP storage compartment tray.
