Cabin Air Filter / Purifier: Service and Repair

Passenger Compartment Air Filter Replacement

Removal Procedure

1. Open the instrument panel compartment.

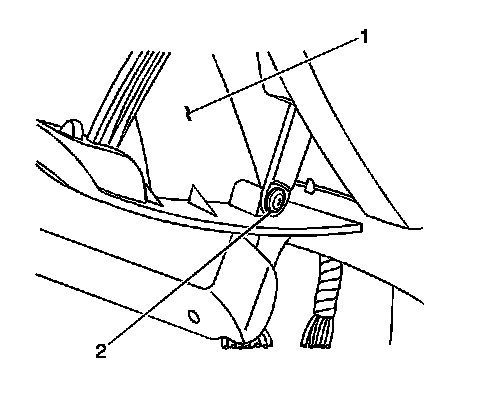

2. Remove the screw (2) from the right side of the compartment door (1).
3. Push in on each side of the compartment door and lower the door.




4. Push down on the tabs (1) and open the filter door (2).

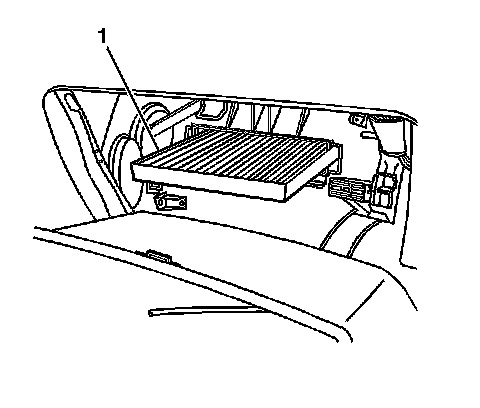

5. Remove the filter (1).

Installation Procedure




1. Install the filter (1).




2. Close the filter door (2).
3. Push in on each side of the compartment door and raise the door onto place.




4. Install the screw (2) to the right side of the compartment door (1).
5. Close the instrument panel compartment.
