Starting and Charging: Locations
Engine Electrical Component Views
Ignition Switch
1 - Ignition Switch

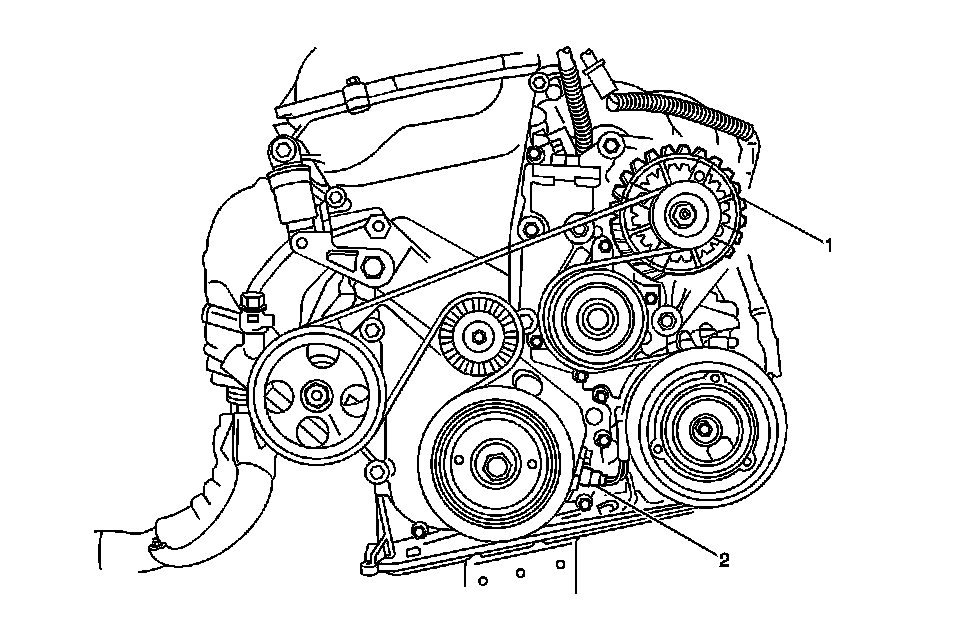

Generator View
1 - Generator
2 - Crankshaft Position Sensor

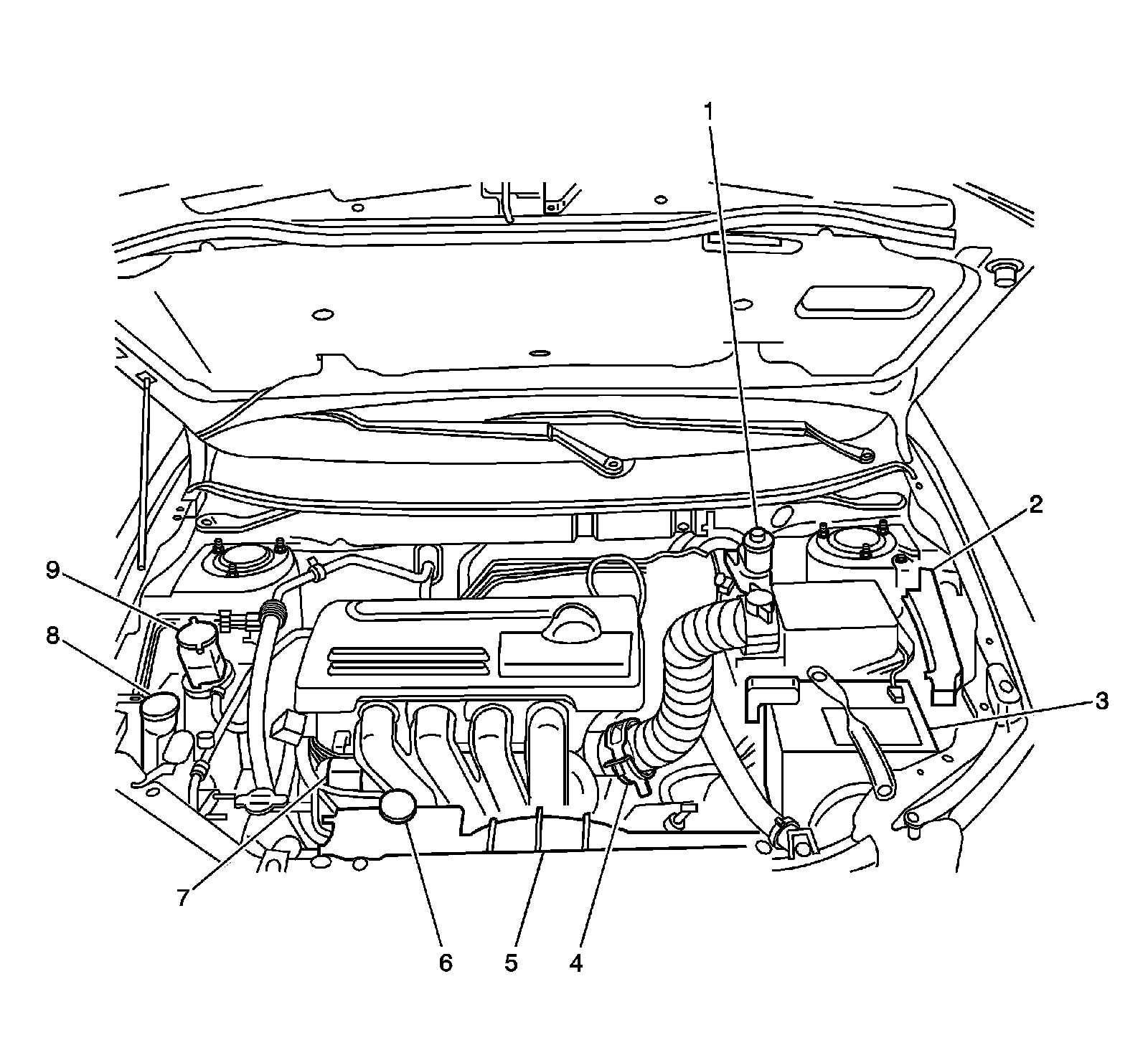

Engine Compartment View
1 - Brake Fluid Reservoir
2 - Underhood Fuse Block
3 - Battery
4 - Throttle Actuator Control (TAC) Motor
5 - Radiator Fan (Behind Radiator)
6 - Engine Coolant Reservoir
7 - Generator
8 - Windshield Washer Pump
9 - Power Steering Fluid Reservoir

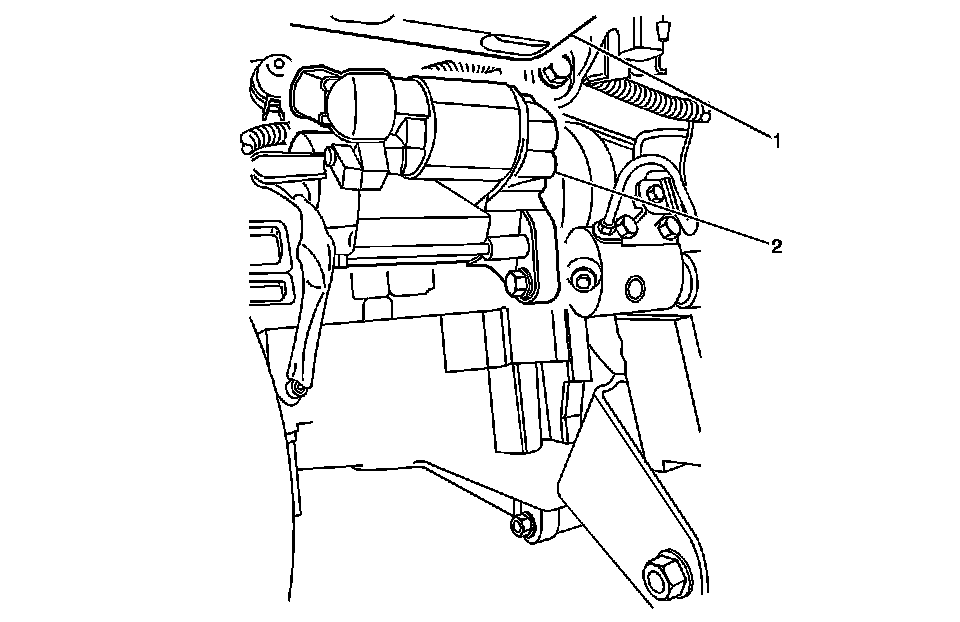

Starter Motor
1 - Exhaust Manifold
2 - Starter Motor
