Front Side Door Window Belt Inner Sealing Strip Replacement



FRONT SIDE DOOR WINDOW BELT INNER SEALING STRIP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the front side door trim.

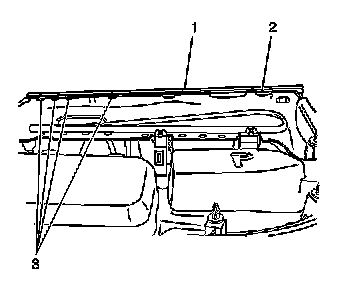

2. Straighten the retaining tabs (3) and remove the inner sealing strip (1) from the front door trim panel (2).

INSTALLATION PROCEDURE




1. Install the inner sealing strip (1) to the front door trim panel (2). Bend the retaining tabs (3) in order to secure the inner sealing strip (1).
2. Install the front side door trim.
