Wiper Arm Replacement



WIPER ARM REPLACEMENT

REMOVAL PROCEDURE

1. IMPORTANT: Before you remove the windshield wiper arm, place the wipers in the park position and note its location for proper installation.

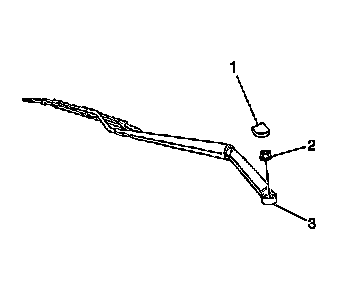

Remove the plastic nut cover (1) from the wiper arm (3).

2. Remove the following components from the windshield wiper transmission:
- The 1 nut (2)
- The wiper arm (3)

INSTALLATION PROCEDURE

1. NOTE: Refer to Fastener Notice in Service Precautions.




Install the windshield wiper arm (3) to the windshield wiper transmission. Secure the arm with the nut (2).

Tighten the windshield wiper arm nut to 20.5 N.m (15 lb ft).

2. Install the plastic nut cover (1) to the wiper arm (3).
