Rear Window Blade Element Replacement



REAR WINDOW BLADE ELEMENT REPLACEMENT

REMOVAL PROCEDURE




1. Lift the rear window wiper blade in order to clear the retaining tab.

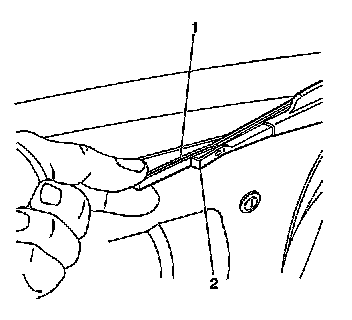

2. While lifting the blade, slide the rear window wiper insert (1) out of the rear window wiper blade (2).

INSTALLATION PROCEDURE




Slide the rear window wiper blade insert (1) completely through the rear window wiper blade (2) until the insert (1) snaps into place and locks.
