Wiper Motor Replacement



WIPER MOTOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the wiper arms.
2. Remove the air inlet grille panel.

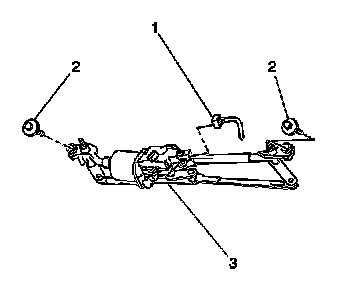

3. Disconnect the wiper motor electrical connector (1).
4. Remove the 2 wiper motor assembly bolts (2).
5. Remove the wiper motor assembly (3) from the engine compartment.
6. Remove the wiper transmission.

INSTALLATION PROCEDURE




1. Position the wiper motor assembly (3) to the cowl.

NOTE: Refer to Fastener Note.

2. Install the wiper motor transmission.
3. Install the 2 wiper motor assembly bolts (2).

Tighten the bolts to 5.5 N.m (48 lb in).

4. Connect the wiper motor electrical connector (1).
5. Install the air inlet grille panel.
6. Install the wiper arms.
