Windshield Wiper Arm Replacement

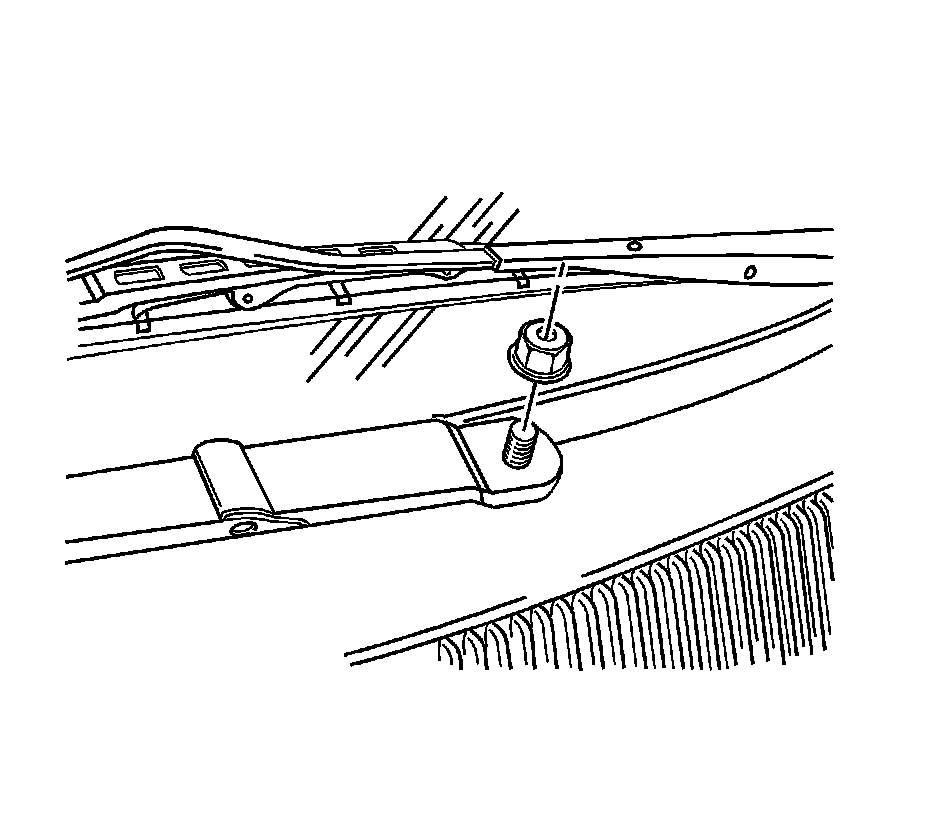

Windshield Wiper Arm ReplacementRemoval Procedure 1.
Open the hood.
2.
Remove the nut from the
wiper arm.
3.
Pull the
wiper arm off.
Installation Procedure 1.
Install the
wiper arm.
Caution: Refer to Fastener Caution (
Fastener Caution).
2.
Secure the
wiper arm with the nut.
Tighten the wiper arm nut to 15 Nm (133 lb in). 3.
Close the hood.
