Rear Fender Liner: Service and Repair

Rear Wheelhouse Panel Liner Replacement


Removal Procedure





1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

2.Remove the rear tires and wheels. Refer to Tire and Wheel Removal and Installation .

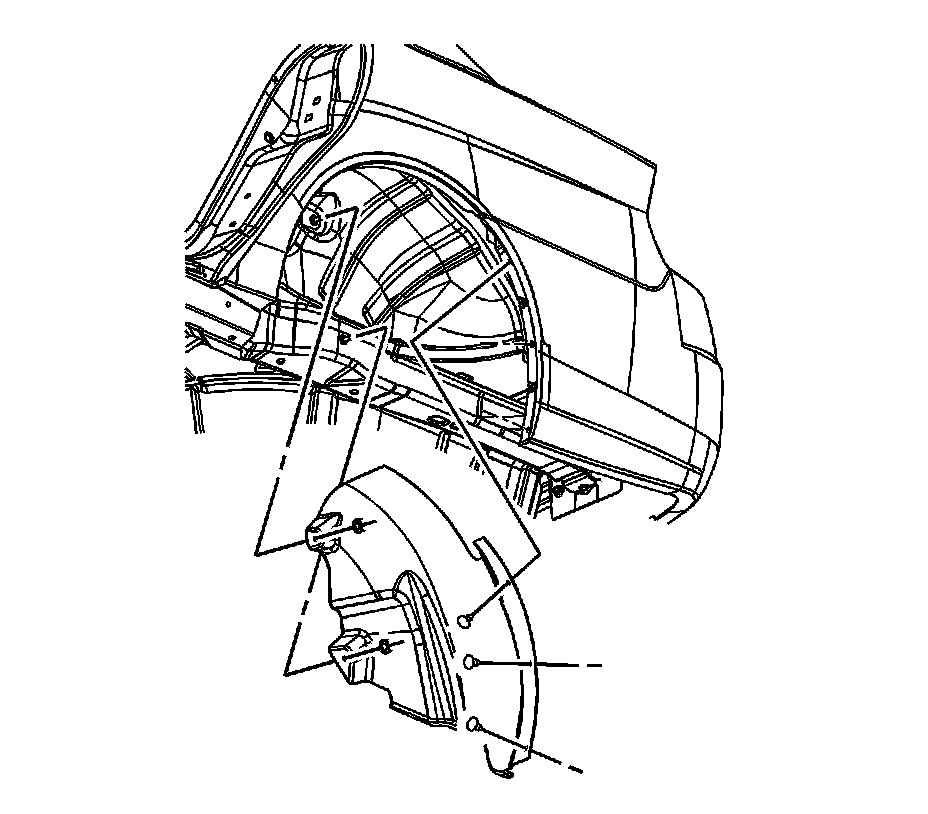

3.Remove the rear wheel housing , pre-cut the liner in the areas (1, 2) to remove.

4.Remove the rear wheelhouse liner-to-rear wheelhouse retainers.

5.Remove the rear wheelhouse liner nuts.

6.Remove the rear wheelhouse liner from the vehicle.

Installation Procedure





1.Install the rear wheelhouse liner to the vehicle.

If replacing the wheelhousing liners with a new one, refer to step 3 in the removal.

2.Install the rear wheelhouse liner fasteners.

Caution:Refer to Fastener Caution .

3.Install the rear wheelhouse liner nuts.

TightenTighten the nut to 5 N �m (44 lb in).

4.Install the rear tires and wheels. Refer to Tire and Wheel Removal and Installation .

5.Lower the vehicle.
