Side Window Defogger Outlet Duct Replacement - Right Side




Side Window Defogger Outlet Duct Replacement - Right Side

Removal Procedure

1. Remove the instrument panel (I/P) assembly. Refer to Instrument Panel Assembly Replacement (Service and Repair).

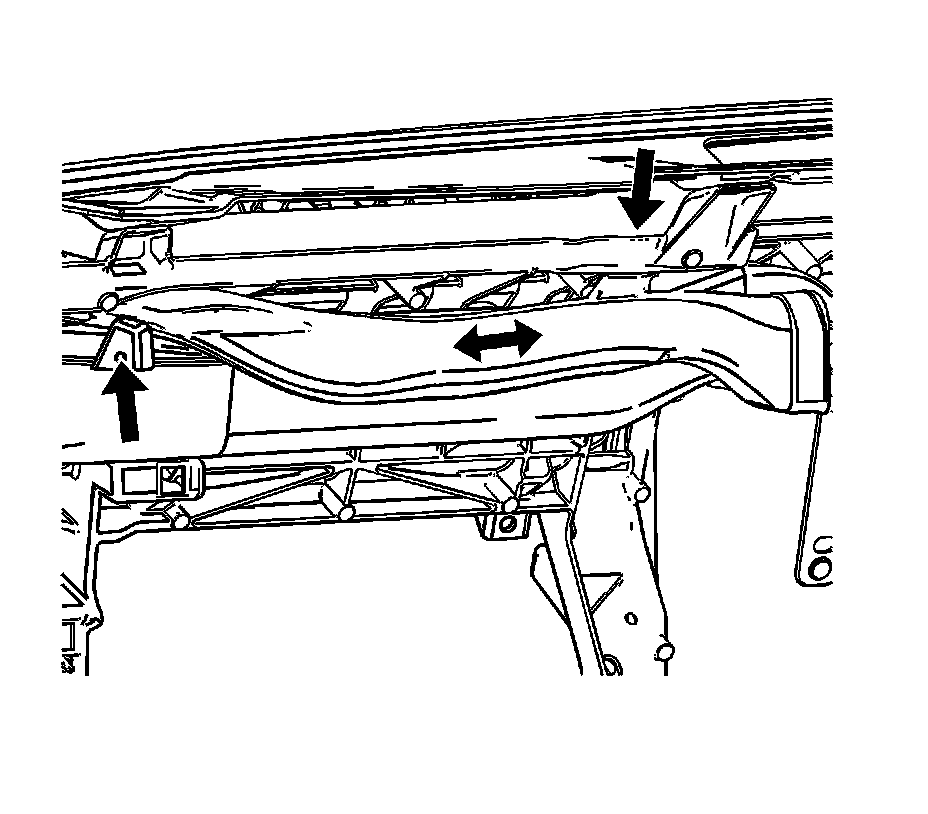

2. Remove the right hand side window defogger duct screws.




3. Remove the right hand side window defogger duct.

Installation Procedure




1. Install the right hand side window defogger duct.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the right hand side window defogger duct screws and tighten to 2.5 Nm (22 lb in).
3. Install the I/P assembly. Refer to Instrument Panel Assembly Replacement (Service and Repair).
