Instrument Panel Outer Air Outlet Deflector Replacement
Instrument Panel Outer Air Outlet Deflector ReplacementRemoval Procedure 1.

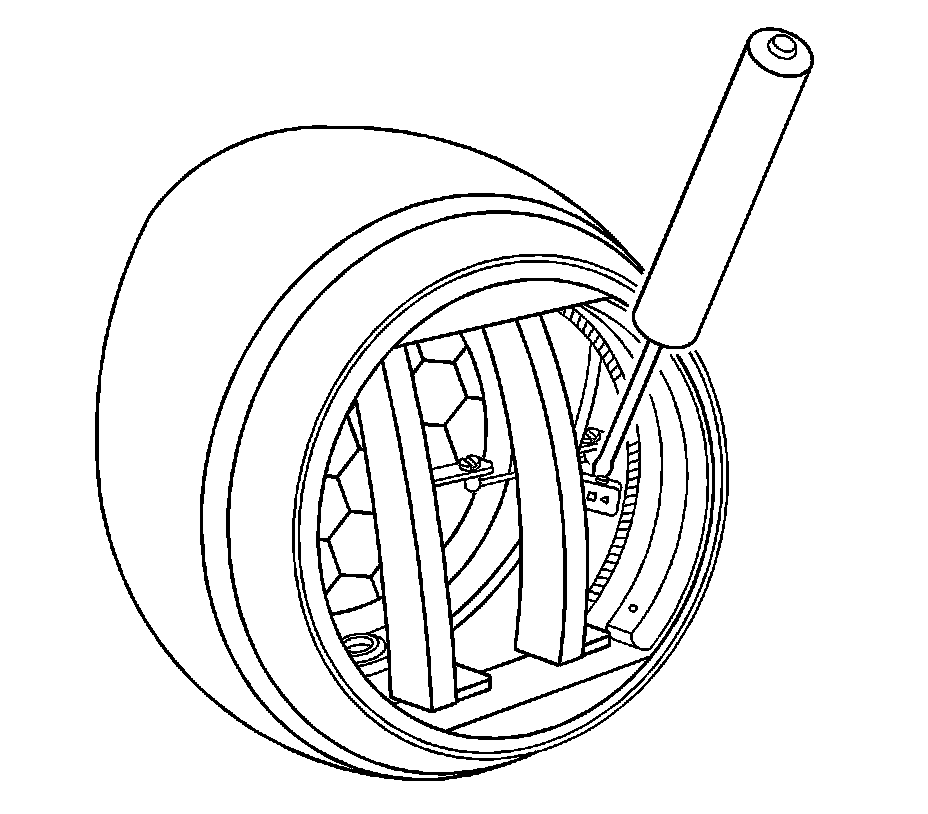

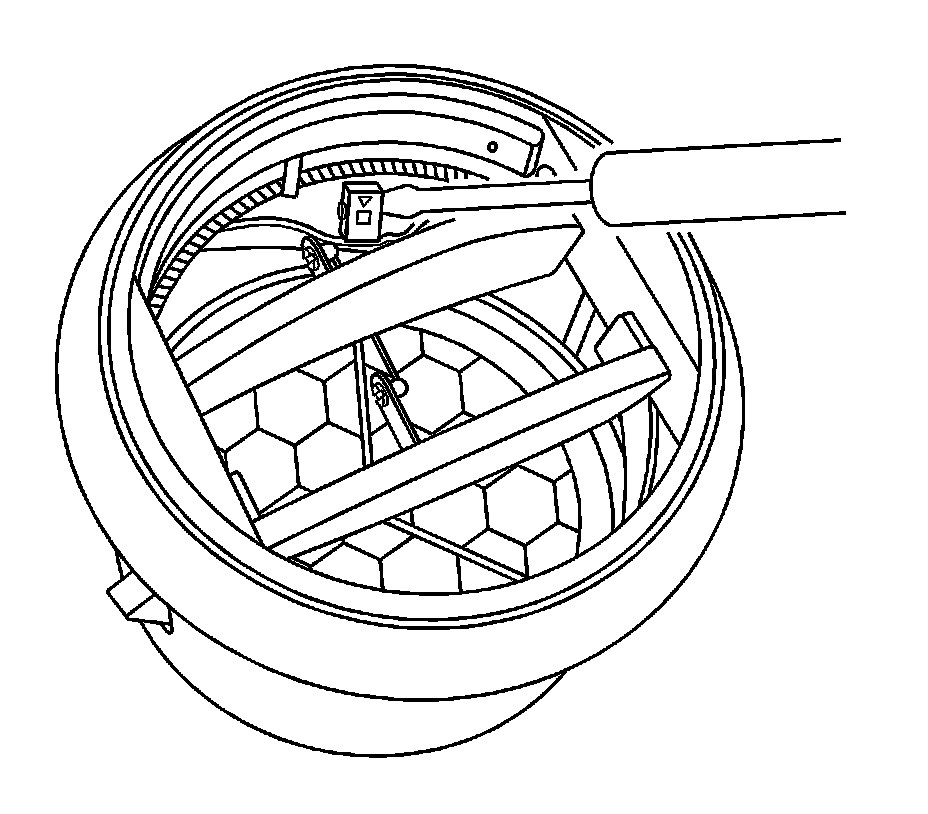

With the vanes of the deflector open, insert a small tool into the deflector and release the air outlet deflector tabs.
2.

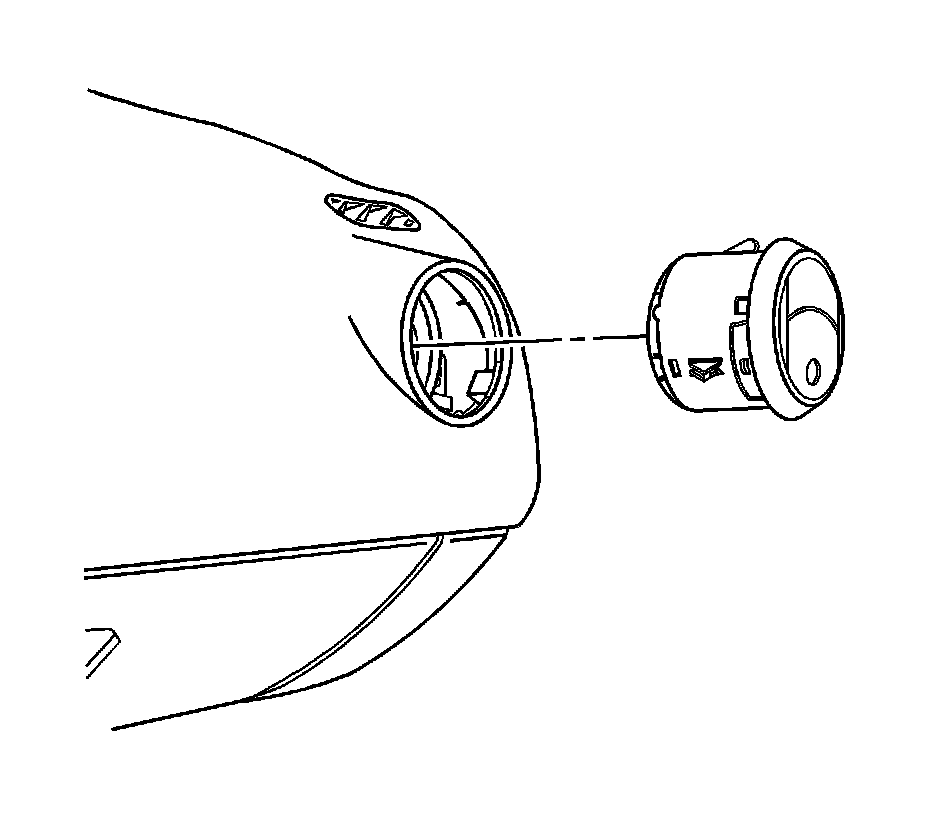

Remove the instrument panel (I/P) air outlet deflector.
Installation ProcedureInstall the I/P air outlet deflector to the I/P trim pad.
