Power Steering Pressure Control Valve: Service and Repair




Power Steering Pump Flow Control Valve Replacement - Off Vehicle

Disassembly Procedure

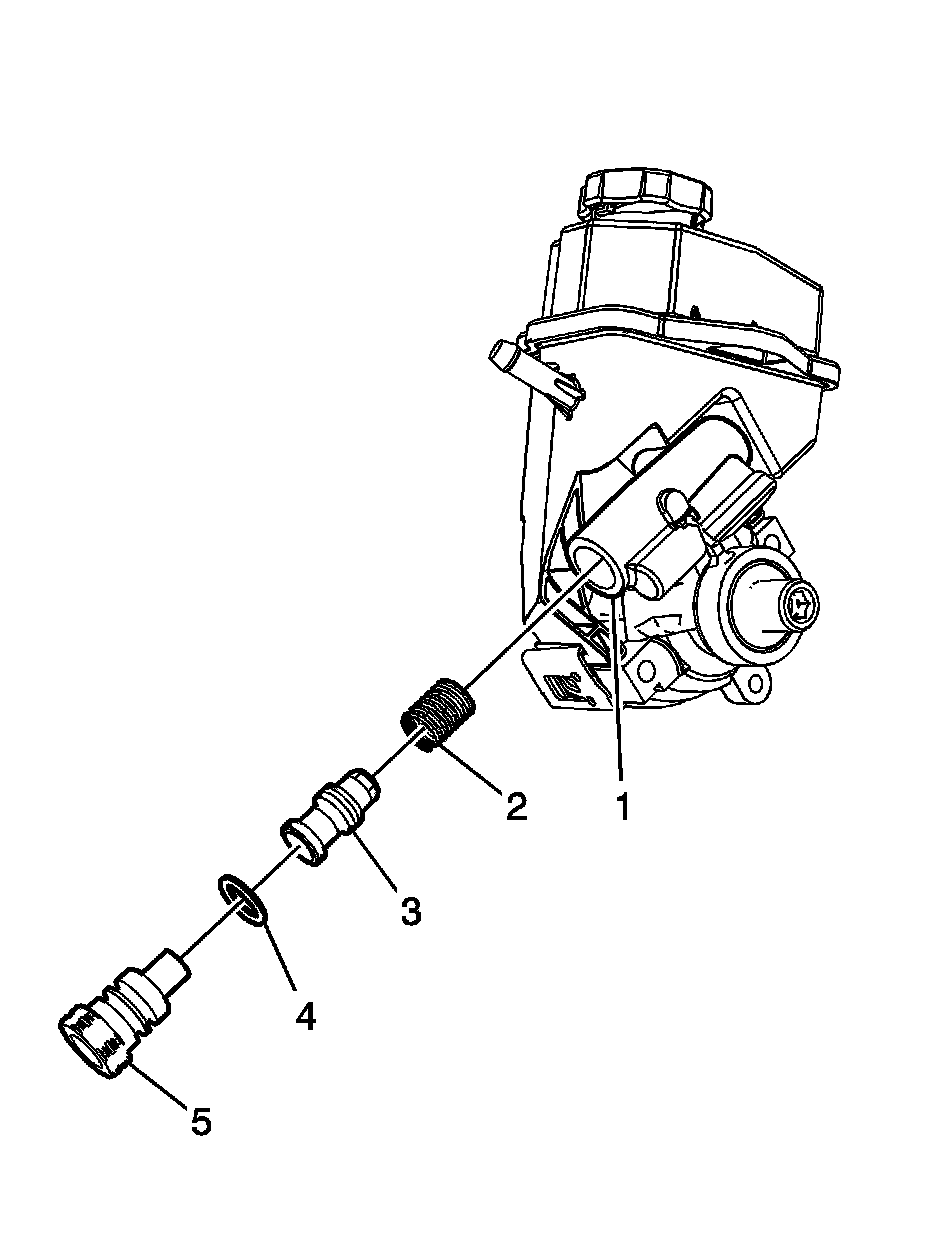

1. Remove the power steering pump flow control valve fitting (5) from the power steering pump housing (1).
2. Remove the power steering pump flow control valve fitting O-ring seal (4) from the power steering pump flow control valve fitting (5).
3. Remove the power steering pump flow control valve (3).
4. Remove the power steering pump flow control valve spring (2).

Assembly Procedure




1. Install the power steering pump flow control valve spring (2) into the power steering pump housing (1).
2. Install the power steering pump flow control valve (3) into the power steering pump housing (1).
3. Lubricate the power steering pump flow control valve fitting O-ring seal (4) with power steering fluid.
4. Install the power steering pump flow control valve fitting O-ring seal (4) onto the power steering pump flow control valve fitting (5).

Caution: Refer to Fastener Caution (Fastener Caution).

5. Install the power steering pump flow control valve fitting (5) to the power steering pump housing (1).
Tighten the fitting to 60 Nm (44 lb ft).
