Front Seat Back Trim Replacement




Front Seat Back Trim Replacement

Removal Procedure

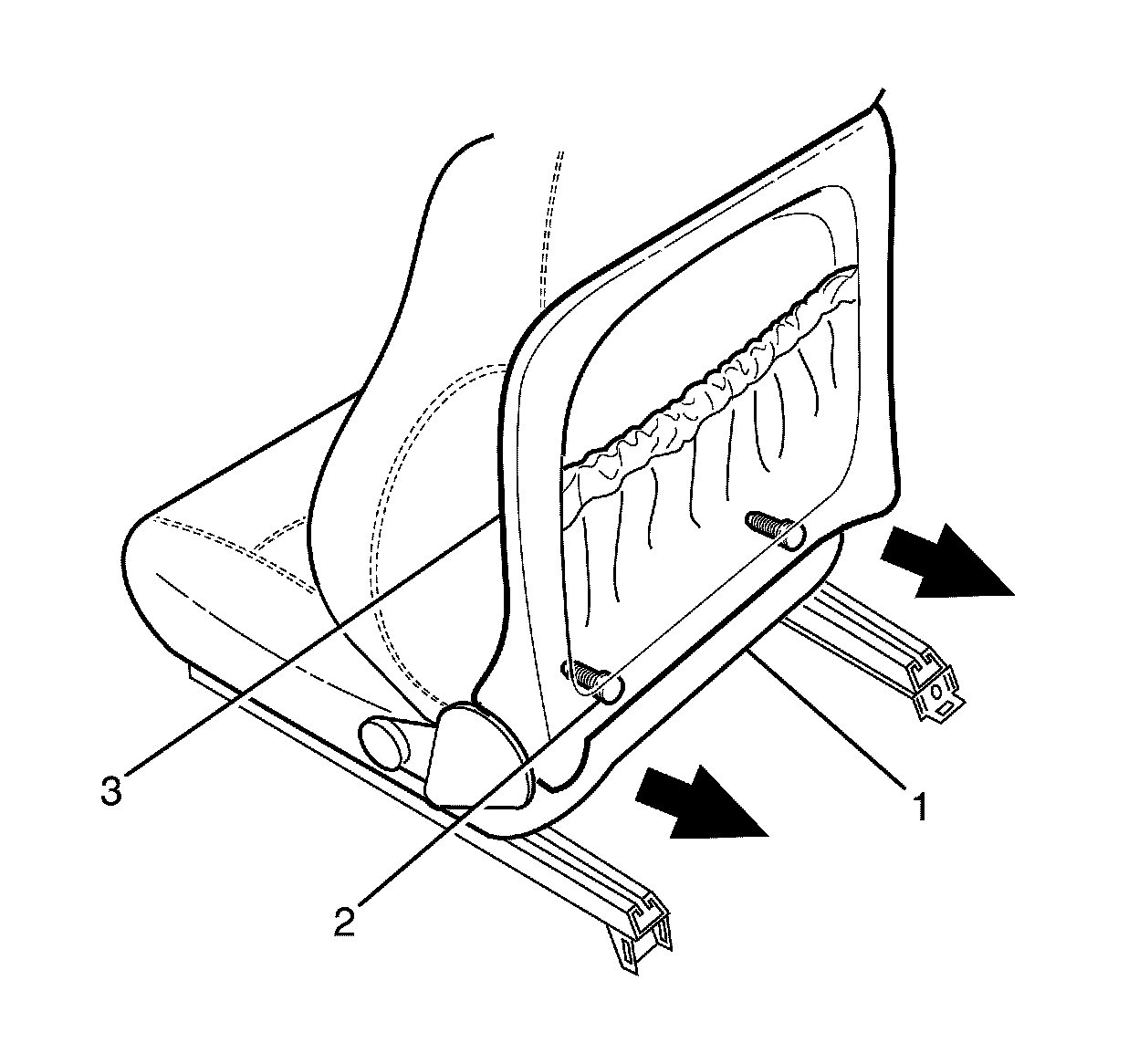

1. Pull the lower corners of the front seat-back trim (3) away from the seat (1) disengaging the two retaining clips (2).




2. While holding the lower section of the rear trim cover (2) out, pull the cover down to release the two upper retaining lugs (1).
3. Remove the rear trim cover (2).

Installation Procedure





Note: When installing the seat-back trim make sure the retaining clips are replaced.

1. Align the two upper retaining lugs (1) with the seat-back.
2. Push the front seat-back rear trim cover (2) up and in at the lower edge to engage the two lower retaining clips.
