Connector Locations

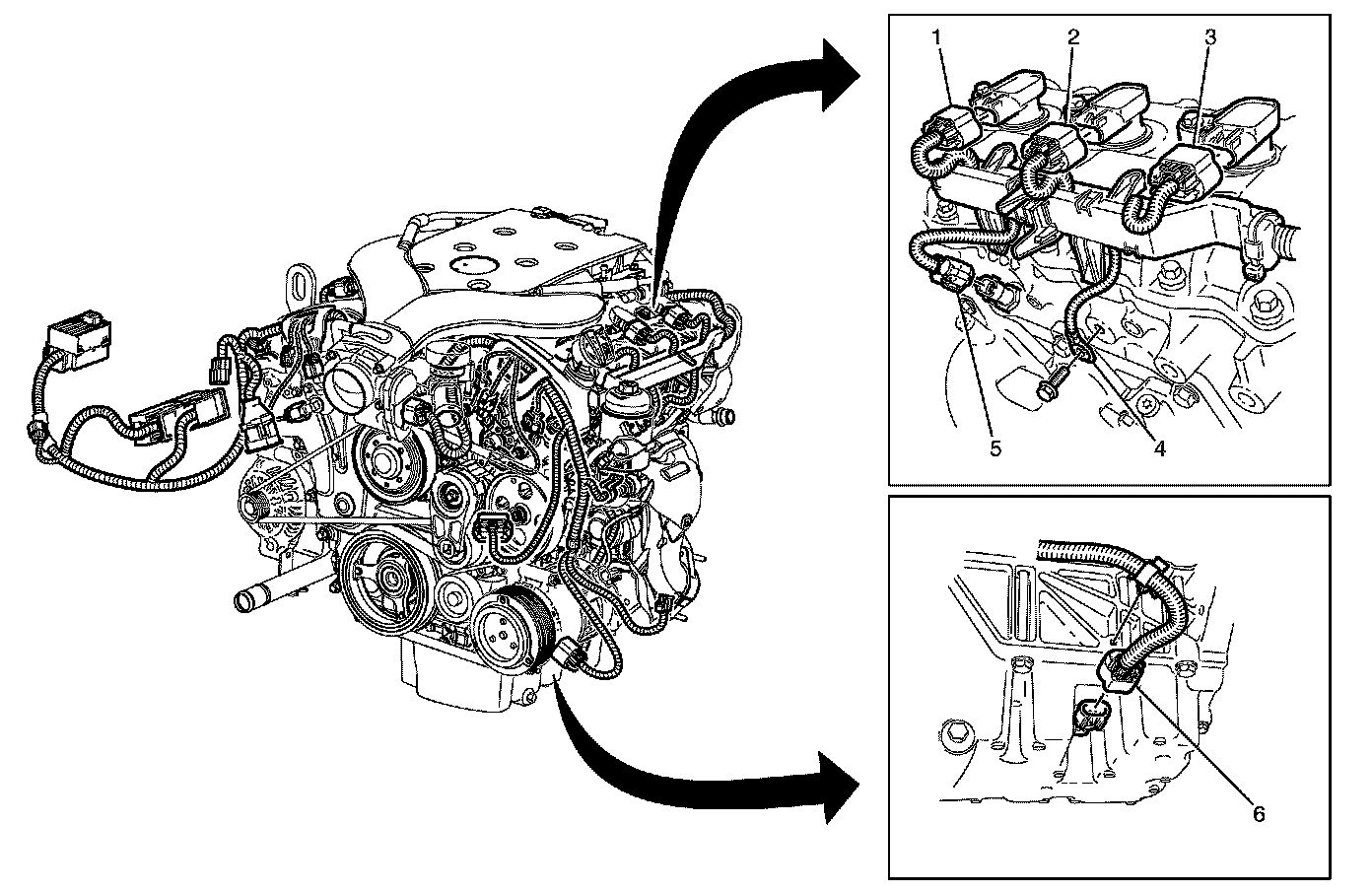

Harness Routing Views

1 - Engine Coolant Temperature (ECT) Sensor Connector - B39
2 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector - B166
3 - Engine Block Ground - G112
4 - Knock Sensor (KS) Left Connector - B65

1 - Ignition Coil 2 Connector - L3
2 - Ignition Coil 4 Connector - L3
3 - Ignition Coil 6 Connector - L3
4 - Engine Block Ground - G109
5 - Engine Coolant Temperature (ECT) Sensor Connector - B39
6 - Engine Oil Level/Temperature Sensor Connector - B41
