Starter Motor: Locations

Harness Routing Views




1 - Fuse Block Underhood - X124
2 - Engine Control Module 2 Connector - A43-X2
3 - Engine Control Module 1 Connector - A43-X1
4 - Starter Connector - M15
5 - Knock Sensor (KS) Right Connector - B65
6 - Engine Oil Level/Temperature Sensor Connector - B41
7 - Crankshaft Position (CKP) Sensor Connector - B30

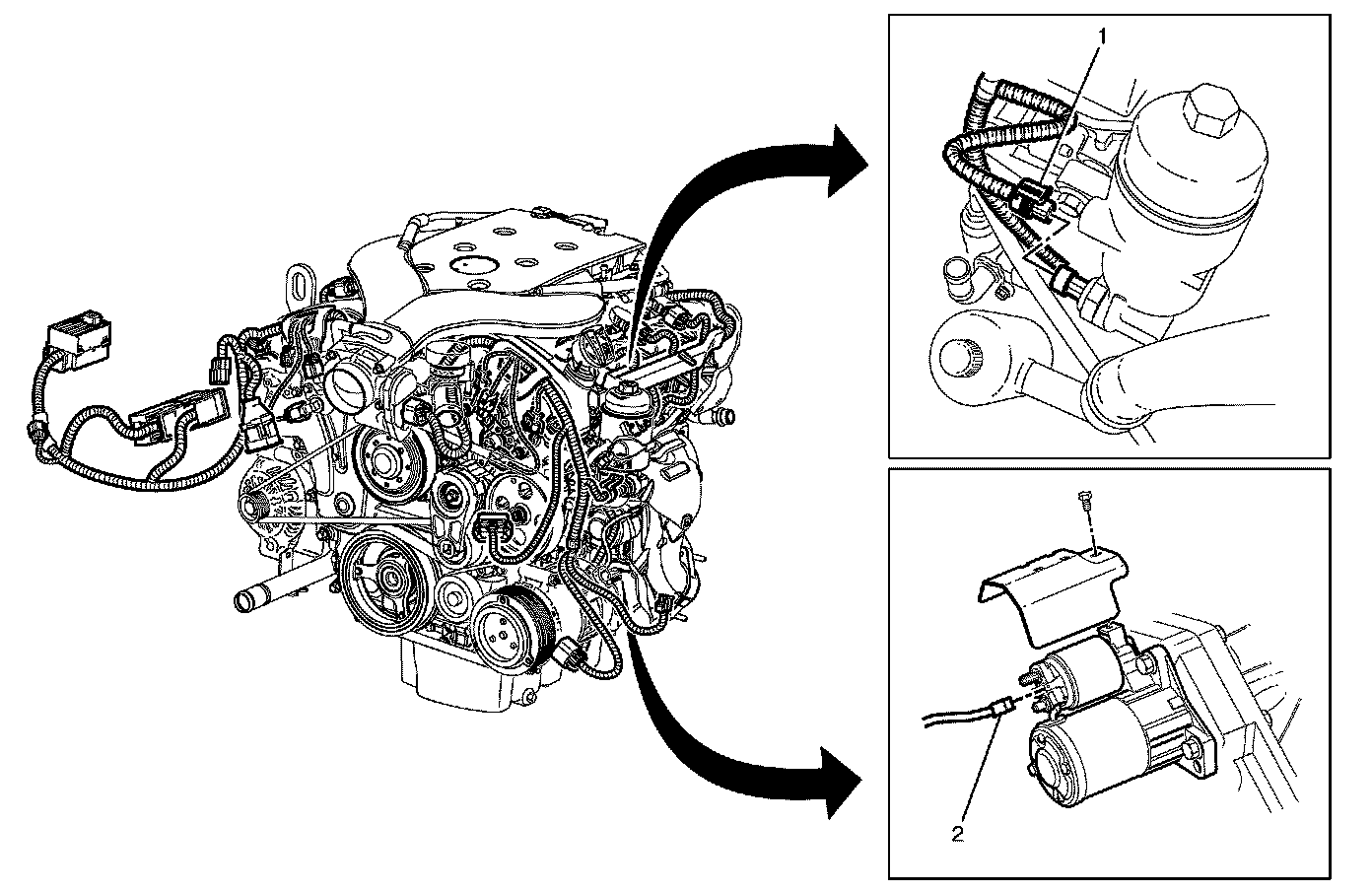

1 - Engine Oil Pressure (EOP) Sensor Connector - B42
2 - Starter Connector - M15

Battery Wiring (3.6L, Left Hand Drive)




1 - Fuse Block - Underhood - X124
2 - Body Ground - G103
3 - Engine Block Ground - G108
4 - Starter Connector - M15
5 - Jumpstart Positive Stud
6 - Dash Panel Grommet / Stud
7 - Generator Connector - G8-X2
