Front Floor Console Replacement




Front Floor Console Replacement

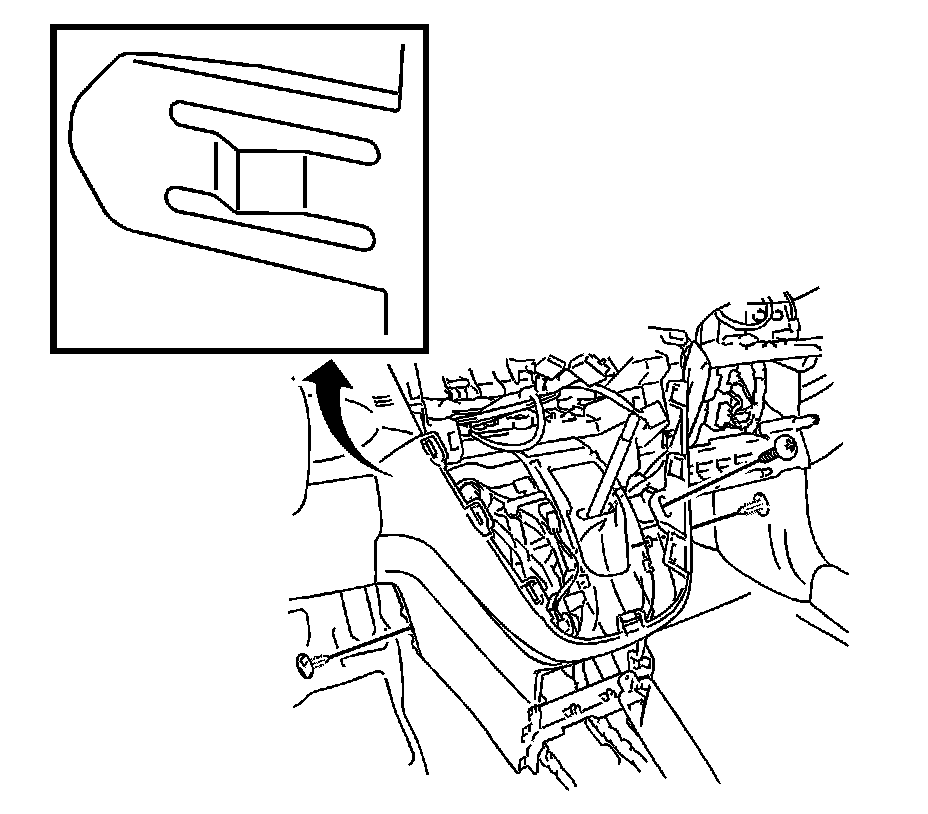

Removal Procedure




1. Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Service and Repair).
2. Remove the screw, if equipped.
3. Remove the two clips.
4. Disengage the six retainers and remove the front floor console.

Installation Procedure




1. Install the front floor console and engage the six retainers.
2. Install the two clips.
3. Install the screw, if equipped.
4. Install the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Service and Repair).
