Power Accessory Switch Panel Replacement




Power Accessory Switch Panel Replacement

Removal Procedure




1. Using a taped flat bladed tool, gently disengage the clip and the seven retainers of the side door accessory switch mounting plate, and slide rearward from the front side door trim.
2. Disconnect the electrical connector.

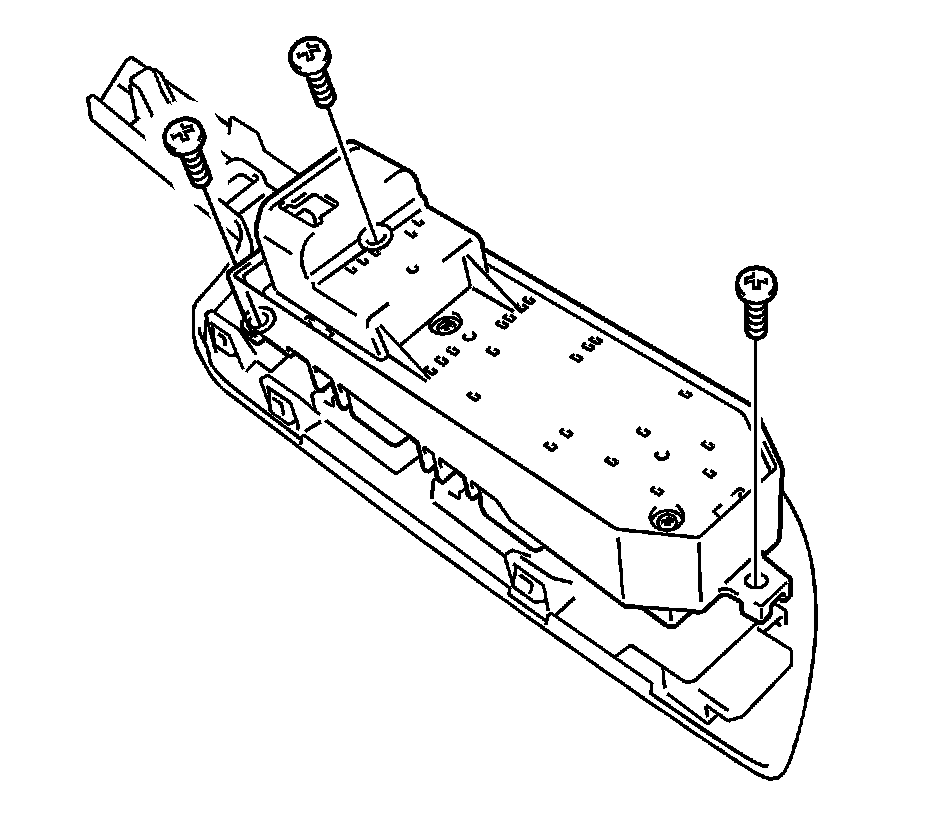

3. Remove the three screws and the power accessory switch, if equipped with power windows.




4. Using a taped flat-bladed tool, disengage the two clips and remove the power accessory switch, if equipped without power windows.

Installation Procedure




1. Engage the two clips and install the power accessory switch, if equipped without power windows.




2. Install the three screws and the power accessory switch, if equipped with power windows.
3. Connect the electrical connector.




4. Slide the side door accessory switch mounting plate forward to engage the clip and the seven retainers to the front side door trim.
