Tool Stowage Compartment Replacement




Tool Stowage Compartment Replacement

Removal Procedure

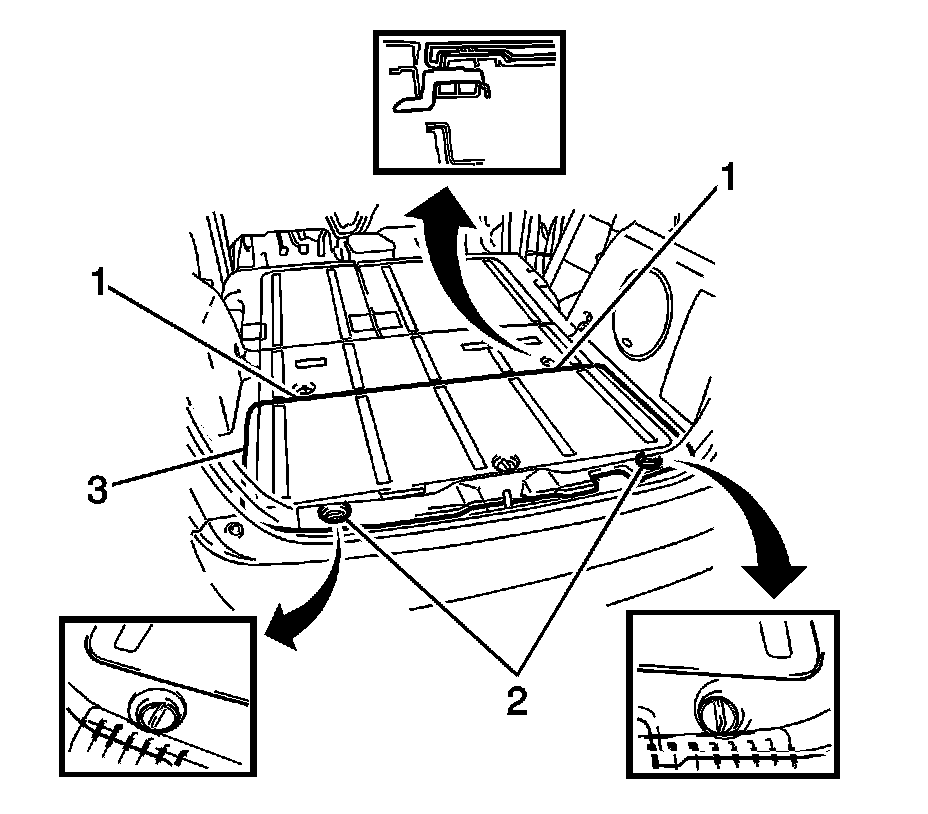

1. Remove tool storage access panel (3), by turning the knobs (2) counter clockwise and disengage the guides (1).

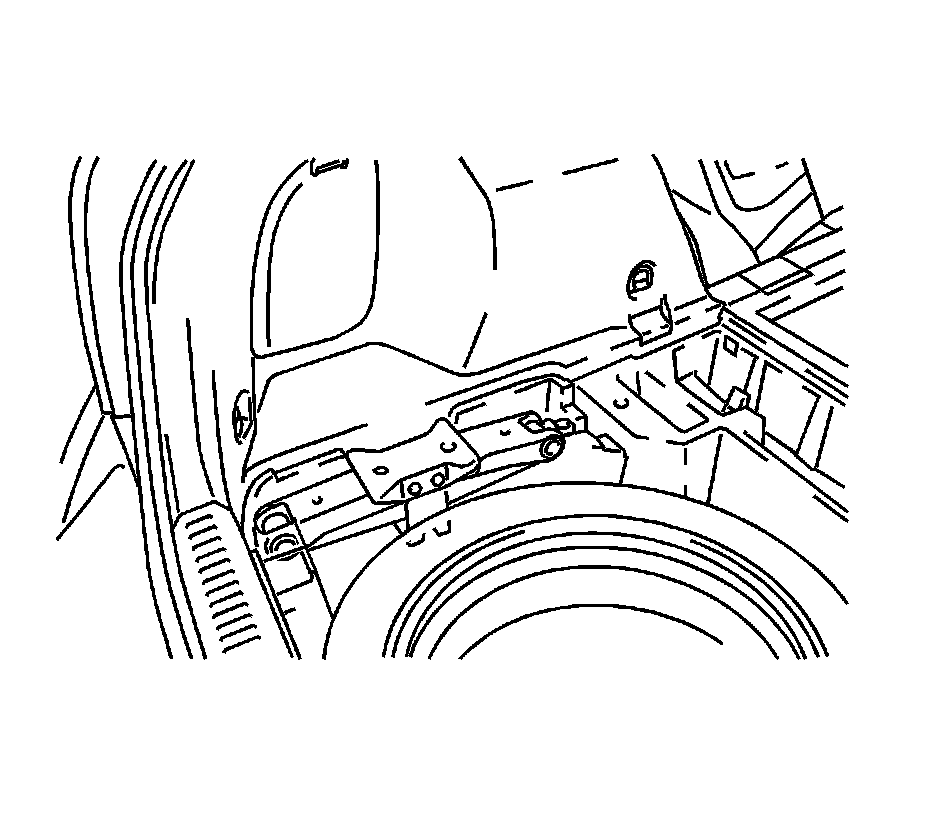

2. Remove the jack assembly.

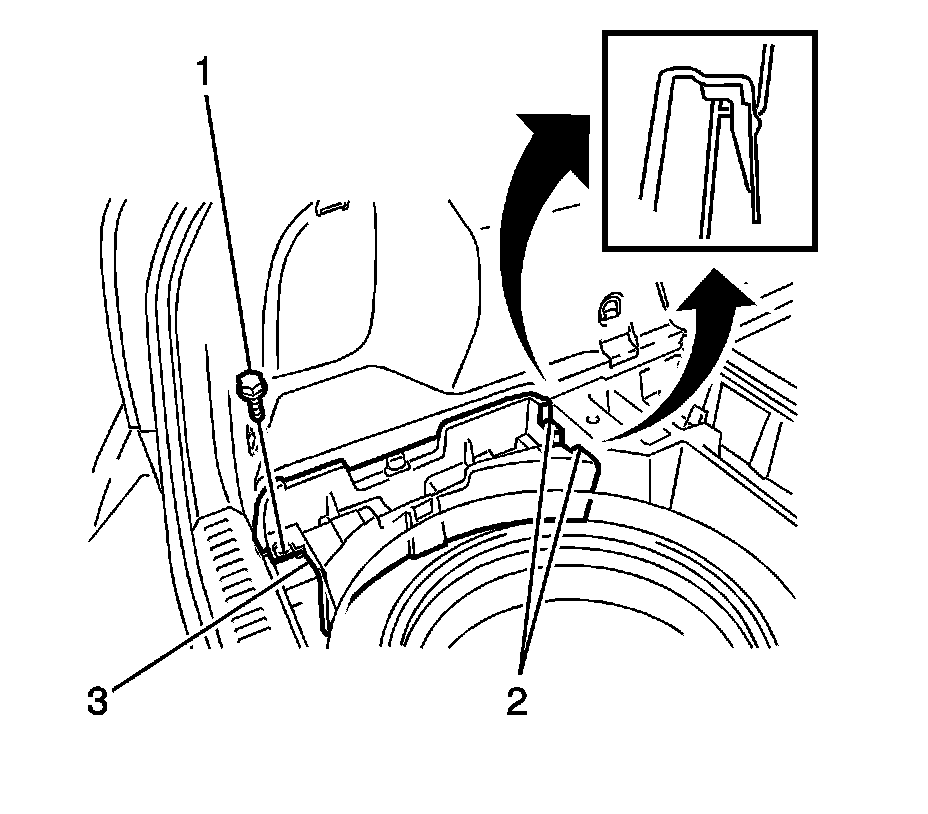

3. Remove the bolt (1).
4. Disengage the two retainers (2) and remove the left tool storage compartment.

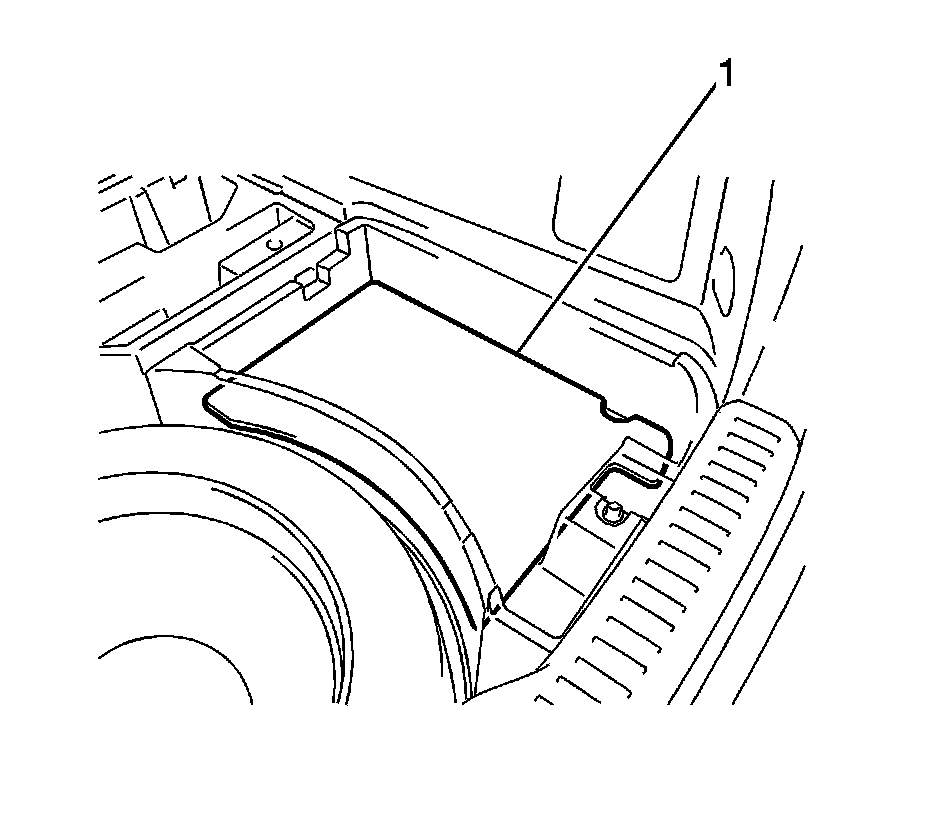

5. Remove the cover (1) from the right side tool storage compartment.

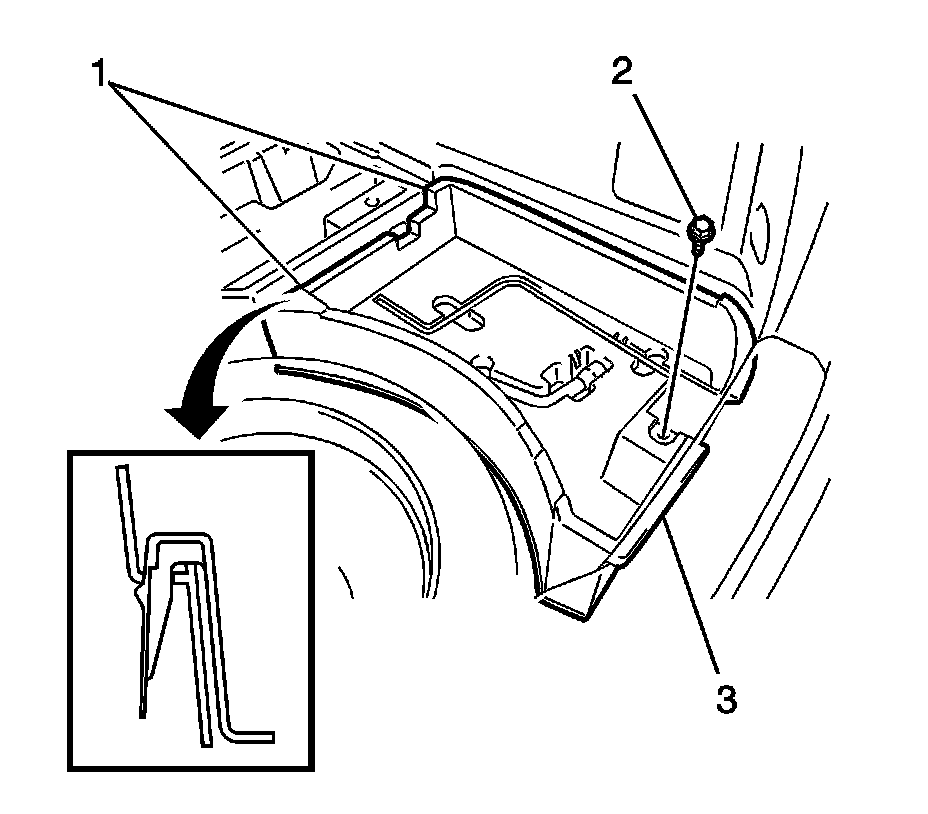

6. Remove the bolt (2).
7. Disengage the two retainers (1) and remove the right tool storage compartment.

Installation Procedure




1. Engage the two retainers (1) and install the right tool storage compartment.
2. Install the bolt (2).




3. Install the cover (1) to the right side tool storage compartment.




4. Engage the two retainers (2) and install the left tool storage compartment.
5. Install the bolt (1).




6. Install the jack assembly.




7. Engage the guides (1) and install the tool storage access panel (3), by turning the knobs (2) clockwise.
