Forward Clutch Assembly and Related Components

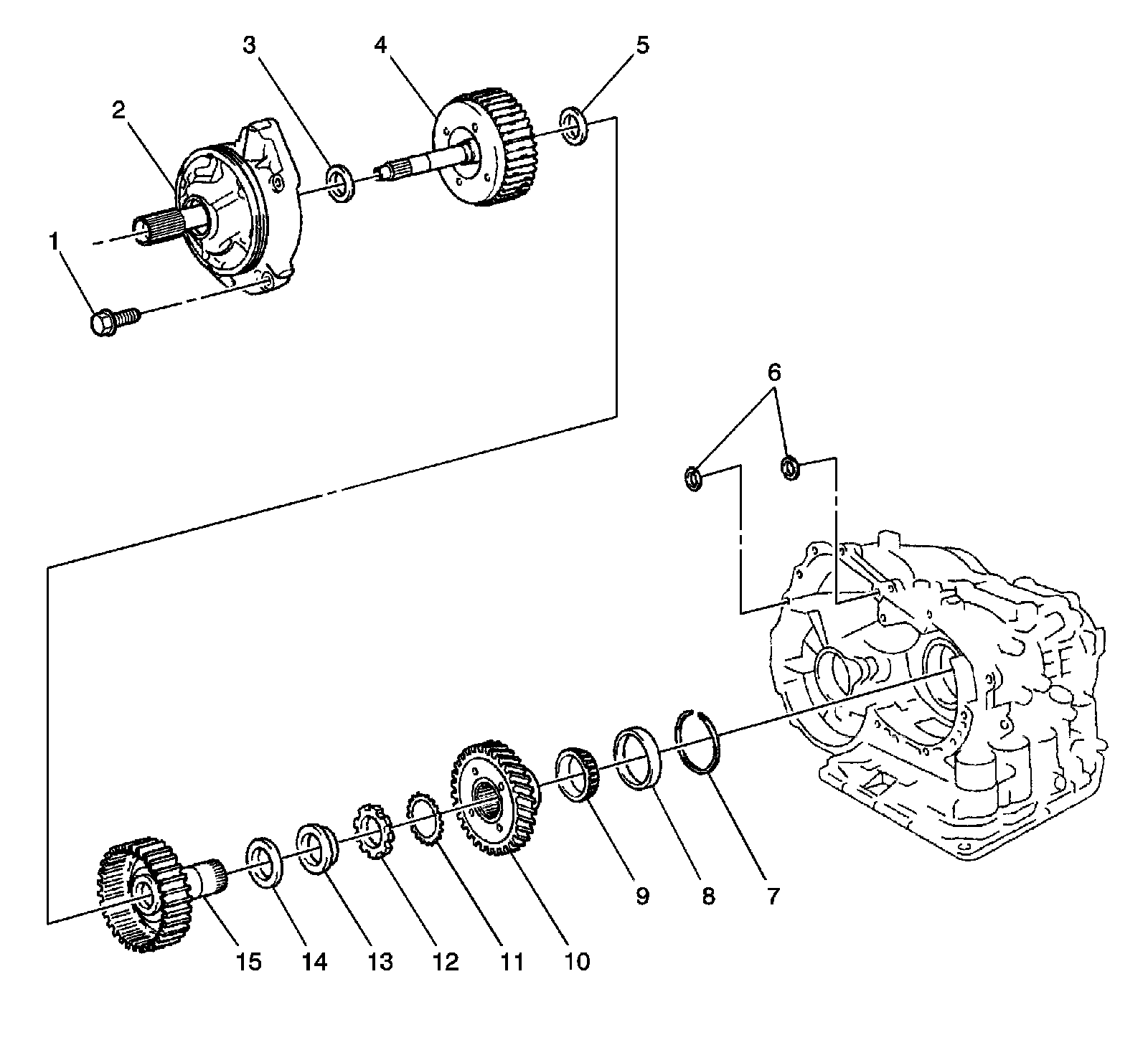

Disassembled Views

Forward Clutch Assembly and Related Components

1 - Oil Pump Bolt
2 - Oil Pump Assembly
3 - Thrust Bearing
4 - Forward Clutch Assembly
5 - Thrust Needle Roller Bearing
6 - Overdrive Brake Gasket
7 - Counter Drive Gear Hole Snap Ring
8 - Bearing Outer Race
9 - Tapered Roller Bearing
10 - Counter Drive Gear
11 - Washer
12 - Counter Drive Gear Nut
13 - Bearing Race
14 - Needle Roller Bearing
15 - Multiple Disc Clutch Hub
