Forward Clutch Hub and Related Components




Disassembled Views

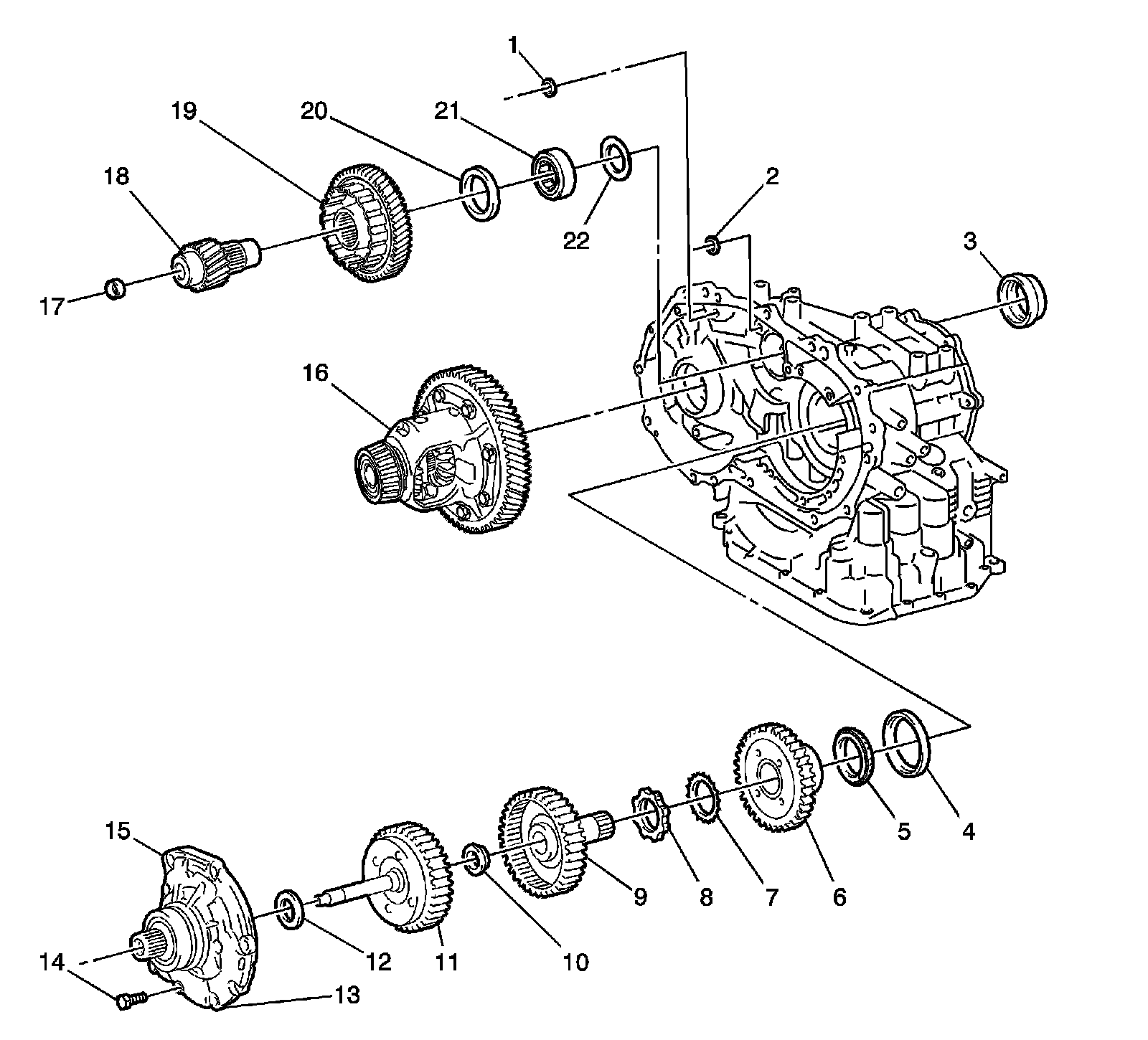

Forward Clutch Hub and Related Components




1 - Overdrive Brake Gasket
2 - Overdrive Brake Gasket
3 - Front Transaxle Case Oil Seal
4 - Counter Drive Gear Bearing Outer Race RH
5 - Counter Drive Gear Bearing RH
6 - Counter Drive Gear
7 - Counter Drive Gear Lock Nut Washer
8 - Counter Drive Gear Nut
9 - Forward Clutch Hub Sub-Assembly
10 - Forward Clutch Hub Thrust Needle Roller Bearing
11 - Input Shaft Assembly
12 - Stator Shaft Thrust Needle Roller Bearing
13 - Oil Pump Assembly Gasket
14 - Bolt
15 - Oil Pump Assembly
16 - Differential Gear Assembly
17 - Differential Drive Pinion Plug
18 - Differential Drive Pinion
19 - Counter Driven Gear
20 - Drive Pinion Thrust Bearing LH
21 - Front Drive Pinion Rear Tapered Roller Bearing
22 - No. 1 Transaxle Case Plate
