Underdrive Planetary Gear Assembly

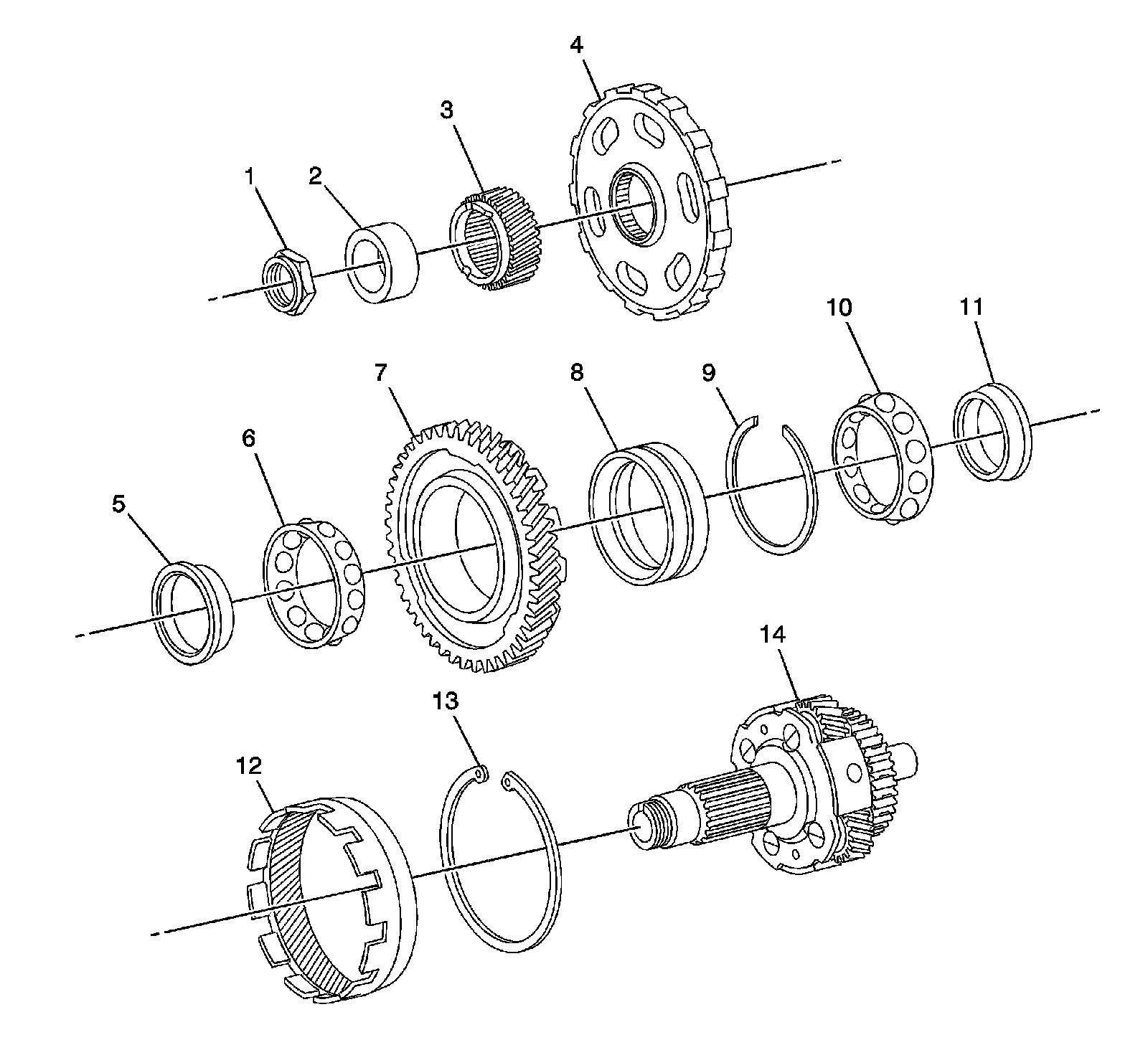

Disassembled Views

Underdrive Planetary Gear Assembly




1 - Front Planetary Gear Nut
2 - Cylindrical Roller Bearing Race Inner
3 - Differential Drive Pinion
4 - Parking Lock Gear
5 - Underdrive Angular Ball Bearing Inner Race (Front Side)
6 - Underdrive Angular Ball Bearing (Front Side)
7 - Counter Driven Gear
8 - Underdrive Angular Ball Bearing Outer Race
9 - Counter Driven Gear Hole Snap Ring
10 - Underdrive Angular Ball Bearing (Rear Side)
11 - Underdrive Angular Ball Bearing Inner Race (Rear Side)
12 - Underdrive Planetary Ring Gear
13 - Underdrive Planetary Ring Hole Snap Ring
14 - Underdrive Planetary Gear Assembly
