Horn: Service and Repair

Horn Replacement

Removal Procedure

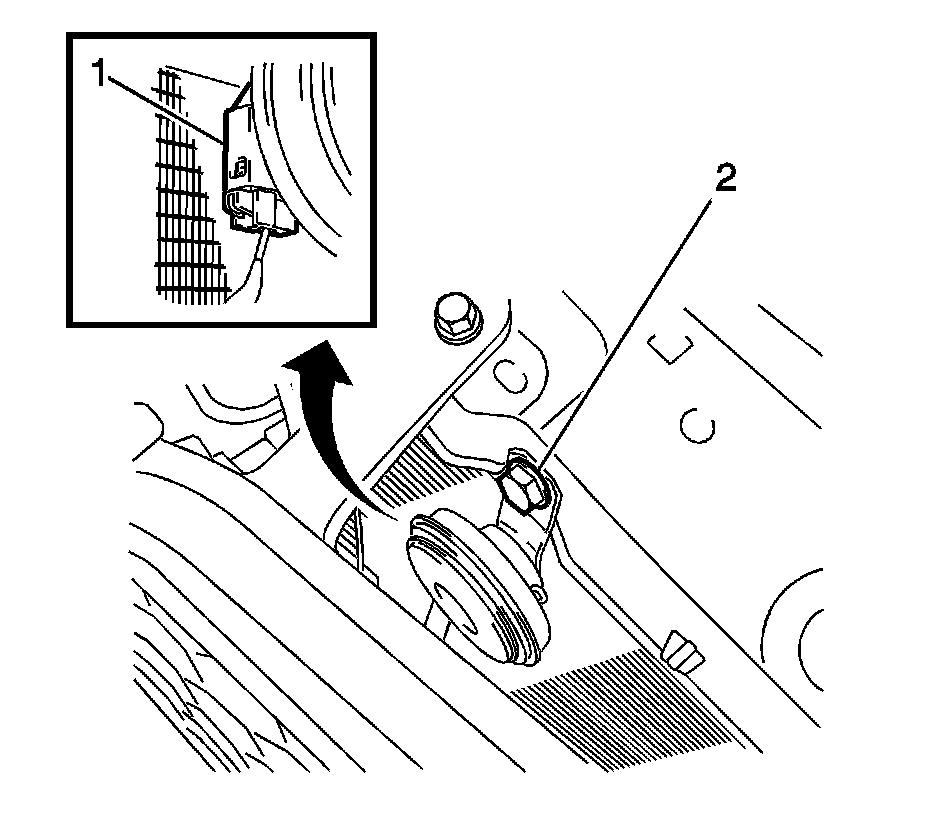

1. Disconnect the horn electrical connector (1).
2. Remove the following components from the vehicle:

* The bolt (2)
* The bracket with the horn attached

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the horn and bracket to the vehicle. Secure the bracket with the bolt (2) and tighten to 20 Nm (15 lb ft).
2. Connect the horn electrical connector (1).
