Turn Signal Flasher: Service and Repair

Hazard and Turn Signal Flasher Replacement

The turn/hazard signal relay is located in the junction block behind the IP storage compartment tray.

Removal Procedure




1. Remove the access panel from the lower left of the instrument panel.

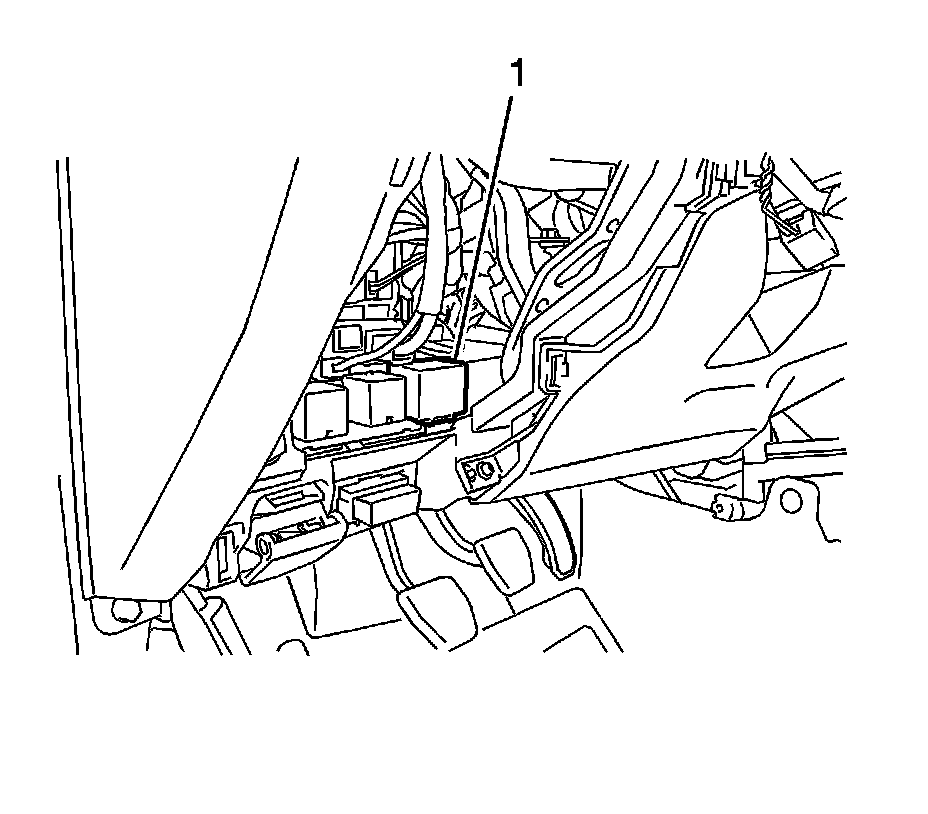

2. Remove the turn/hazard signal relay (1) from the junction block.

Installation Procedure




1. Install the turn/hazard signal relay (1) to the junction block.
2. Install the access panel to the lower left of the instrument panel.
