Child Restraint Tether Anchor Replacement




Child Restraint Tether Anchor Replacement

Removal Procedure




1. Remove the rear access panel.

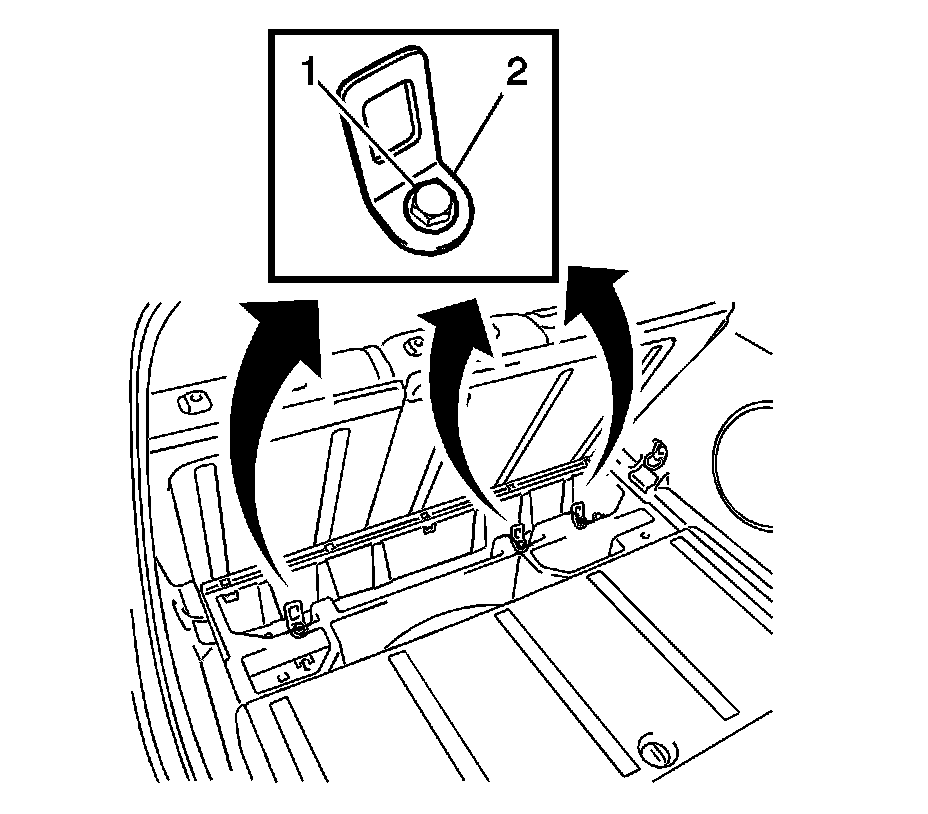

2. Remove the following components from the vehicle:

* The bolt (1)
* The child seat anchor bracket (2)

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the child seat anchor bracket (2) to the vehicle. Secure the bracket with the bolt (1).

Tighten the child seat anchor bracket bolt to 20 Nm (14 lb ft).

2. Install the rear access panel.
