Output Gear Assembly Installation




Output Gear Assembly Installation

Special Tools
* J 22873 Mainshaft Bushing Installer
* DT-49190 Counter Gear Nut Wrench




1. Using a press (1) and J 22873 , install the output gear and output gear bearing outer race to the transmission case.




2. Using a press (1), install the front carrier to the transmission case.




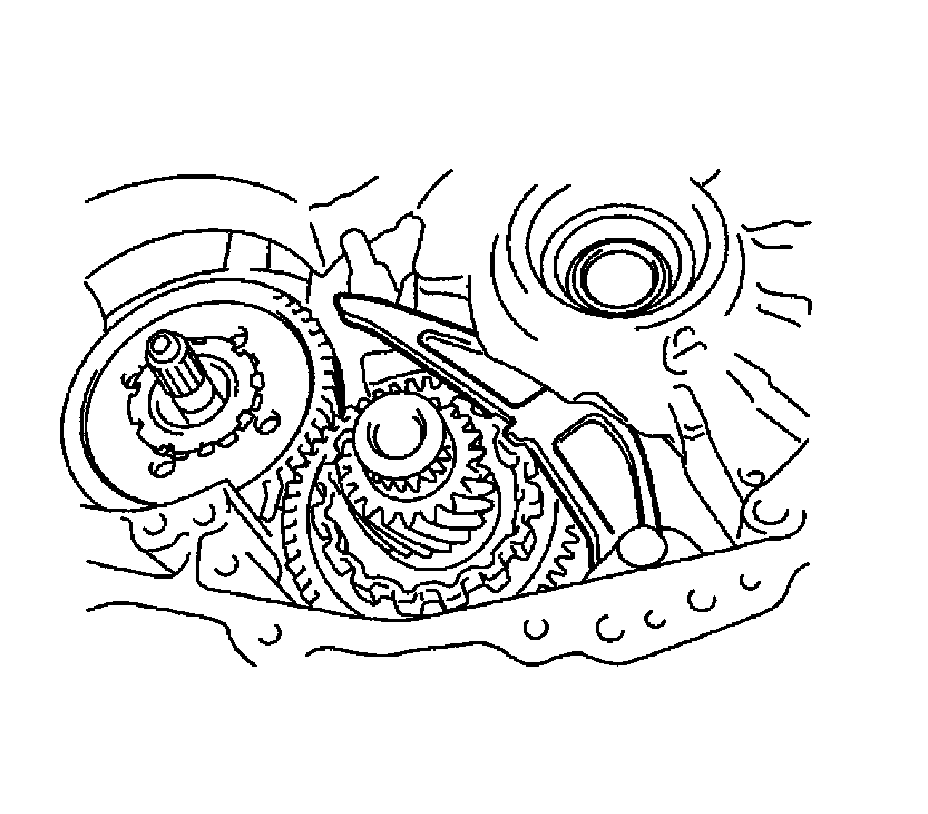

3. Secure the output gear with the parking pawl.




4. Using DT-49190 (1) , install a new lock washer and nut and tighten to 280 Nm (207 lb ft).

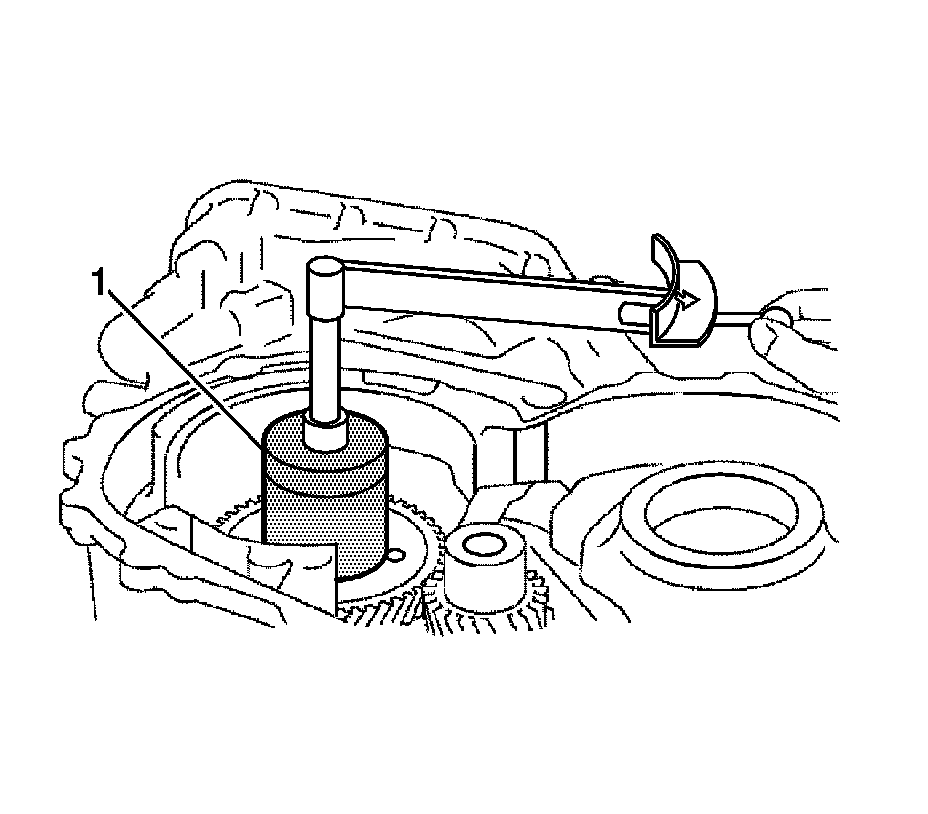

5. Using DT-49190 (1), measure the rotating torque while turning the counter drive gear. Tighten the drive gear to 0.20-0.49 Nm (1.8-4.3 lb in).

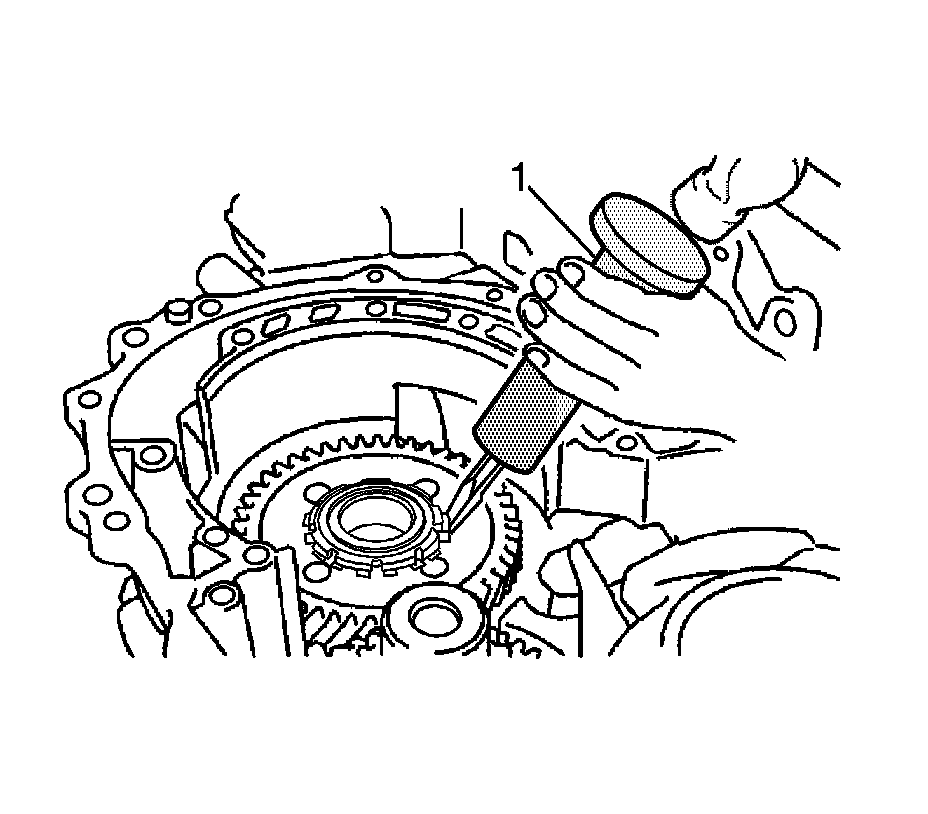

6. Using a punch and hammer (1), stake the lock nut washer.
