Front Side Door Window Belt Outer Sealing Strip Replacement




Front Side Door Window Belt Outer Sealing Strip Replacement

Removal Procedure




1. Completely lower the window.
2. Remove the outside rearview mirror. Refer to Power Mirror Replacement (Power Mirror Replacement).

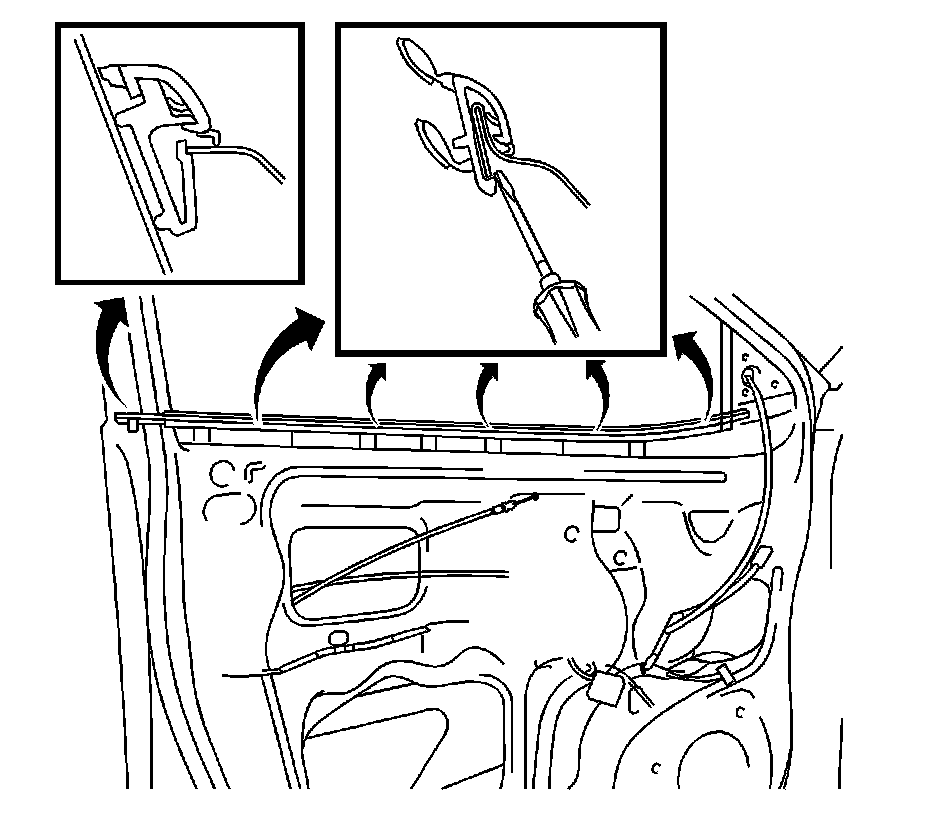

3. Using a taped flat-bladed tool, disengage the front door outer sealing strip retainers.
4. Remove the outer sealing strip from the front door.

Installation Procedure




1. Install the outer sealing strip to the front door. Making sure the sealing strip retainers are engaged.
2. Install the outside rearview mirror. Refer to Power Mirror Replacement (Power Mirror Replacement).
3. Raise the window.
