Rear Side Door Window Outer Sealing Strip Replacement

Rear Side Door Window Outer Sealing Strip Replacement

Removal Procedure




1. Completely lower the window.
2. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair).

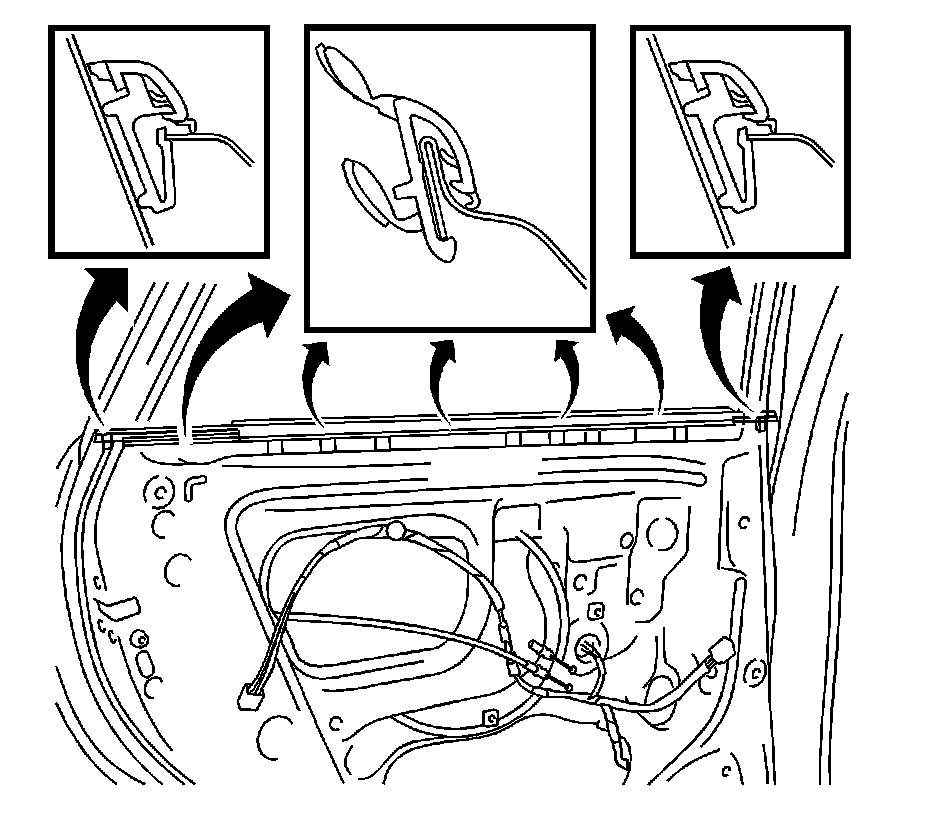

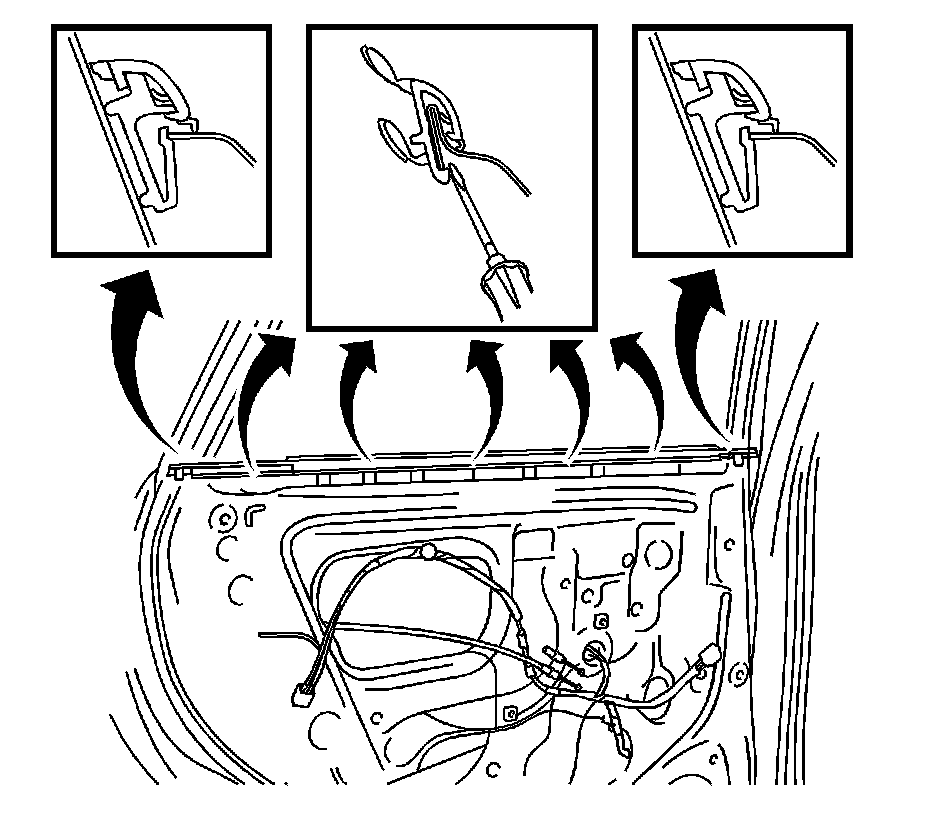

3. Using a taped flat bladed tool, disengage the outer sealing strip retainers.
4. Remove the outer sealing strip from the rear door.

Installation Procedure




1. Install the outer sealing strip to the rear door, making sure the retainers are engaged.
2. Install the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair).
3. Raise the window.
