Engine Splash Shield Replacement - Left Side


Engine Splash Shield Replacement - Left Side


Removal Procedure





1.Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .

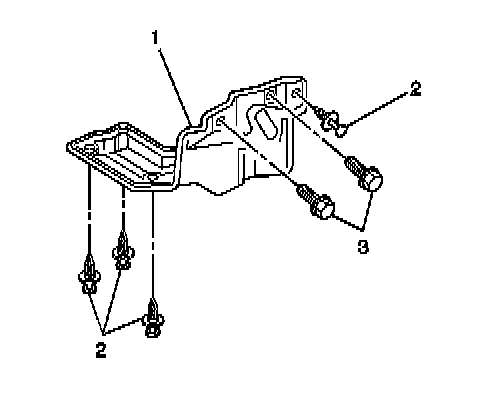

2.Remove the following components from the vehicle:

-The 2 bolts (3)

-The 4 retainers (2)

-The engine splash shield (1)

Installation Procedure

Caution:Refer to Fastener Caution .





1.Install the engine splash shield (1) to the vehicle. Secure the splash shield with the 2 bolts (3) and the 4 retainers (2).

TightenTighten the engine splash shield bolts to 10 N �m (89 lb in).

2.Lower the vehicle.
