Shift Solenoid, A/T

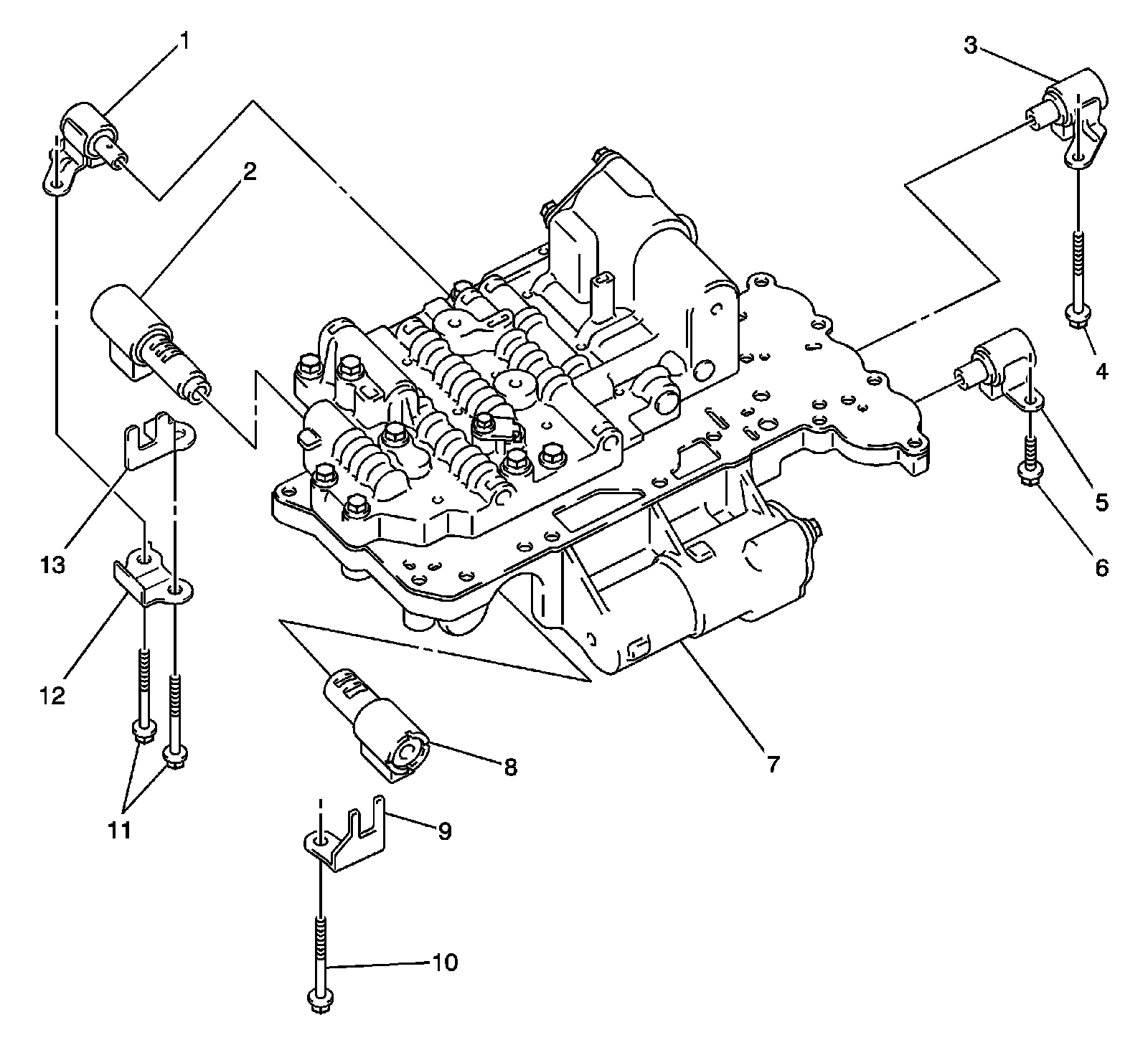

Disassembled ViewsShift Solenoid Locations1 - Shift Solenoid Valve ST
2 - Shift Solenoid Valve SLT
3 - Shift Solenoid Valve S1
4 - Shift Solenoid Valve Bolt
5 - Shift Solenoid Valve S2
6 - Shift Solenoid Valve Bolt
7 - Valve Body
8 - Shift Solenoid Valve SLU
9 - Lock Plate
10 - Lock Plate Bolt
11 - Lock Plate Bolt
12 - No. 3 Solenoid Lock Plate
13 - No. 1 Solenoid Lock Plate
